Manually install the Akamai EdgeWorker Enforcer v4
If your organization uses Akamai, you can use HUMAN’s Akamai EdgeWorker Enforcer to protect against malicious behavior. The Enforcer is installed using an Akamai EdgeWorker and deployed to your content delivery network (CDN). The Enforcer dictates how traffic should be handled per your organization’s standards.
You can learn how to install the Akamai EdgeWorker Enforcer with this article.
If you do not already have an Enforcer deployed to your environment, we highly recommend using the Deploy Tool method instead. See our documentation for more information.
Prerequisites
An Akamai account with editor access to the following:
EdgeWorkers
Property Manager
NetStorage
EdgeKV (optional)
Node v18.x or later
Sometimes, you may encounter a 500 error when the EdgeWorker initialization exceeds the CPU limit for your resource tier. For example, you may see response headers such as:
$
status=InitCpuTimeoutError
$
init_cpu_time=60
$
res_tier=200
This error comes from Akamai EdgeWorker’s runtime limits and not HUMAN’s service. To resolve this, we recommend moving to a higher Akamai EdgeWorker resource tier.
Installation
The Akamai installation consists of three parts. If you prefer not to have HUMAN set up your Akamai EdgeWorker, Property Manager, and NetStorage, then you will need to complete this process yourself. Be sure to complete each part in order.
From your Akamai account’s main menu, navigate to Origin Services > NetStorage > Storage Groups.
Select + Add Storage Group.
Complete the steps that appear to create your storage group. You can update fields as appropriate for your organization or leave them as their defaults. However, note the following exceptions:
Storage Group Details > Access Control Group: Select the same group as the Property Manager that you will be editing for this setup.
Directory Settings: When creating a directory, we recommend naming it px.
If you do not name the directory “px”, then you will need to update all related rules matching this NetStorage path in the Property Manager with the different directory name that you chose.
Select Create. The storage group will begin to propagate.
Once the group has propagated, navigate to NetStorage > Upload Accounts.
Either upload a new user or edit an existing one. Ensure the user has the following settings:
Access Methods > NetStorage HTTP CMS API: Select + Add HTTP API key and Save.
If you have EdgeKV access and want to utilize the remote configuration feature, then navigate into the remote_config_example directory and replace the edgekv_tokens.js file with your own EdgeKV tokens. Otherwise, navigate into the basic_example directory.
Run the commands npm install and npm run build:worker. This will install dependencies and create a build.tgz file in the dist directory.
From your Akamai account’s main menu, navigate to CDN > EdgeWorkers.
Select Create EdgeWorker ID.
Complete the following fields:
Name: Enter a name for your EdgeWorker.
Group: Select the same group as the Property Manager that you will be editing for this setup.
Resource tier: Select Dynamic Compute.
Select Create EdgeWorker ID.
Select the ID of the EdgeWorker you just created.
Select Create Version.
Upload the tgz file provided by HUMAN and select Create version.
From the Actions menu, select Activate version.
Choose whether to activate it on your staging or production network.
We recommend activating on both staging and production. This way, when your Property Manager setup is complete, you can freely activate the configuration to either staging or production without going back to your EdgeWorker later.
If you do choose to activate on both, then you will need to do Steps 10 and 11 twice—once for each network.

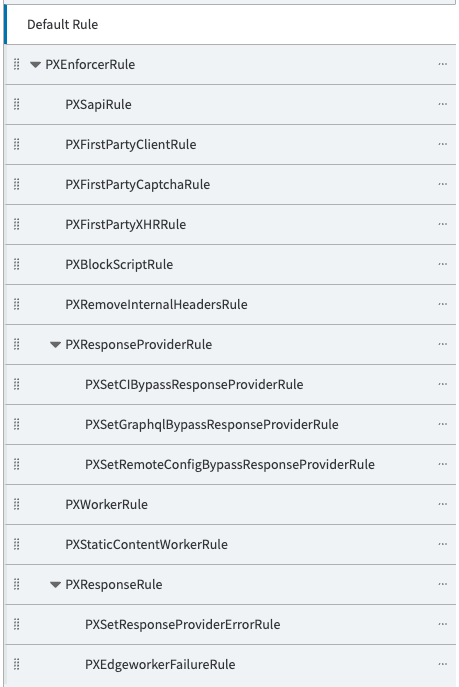

Setting up the Property Manager requires adding Property Manager Variables to configure the HUMAN EdgeWorker Enforcer and Property Manager Rules to trigger the HUMAN EdgeWorker Enforcer.
From your Akamai account’s main menu, navigate to CDN > Properties.
Select the property name that you want to deploy the Enforcer on.

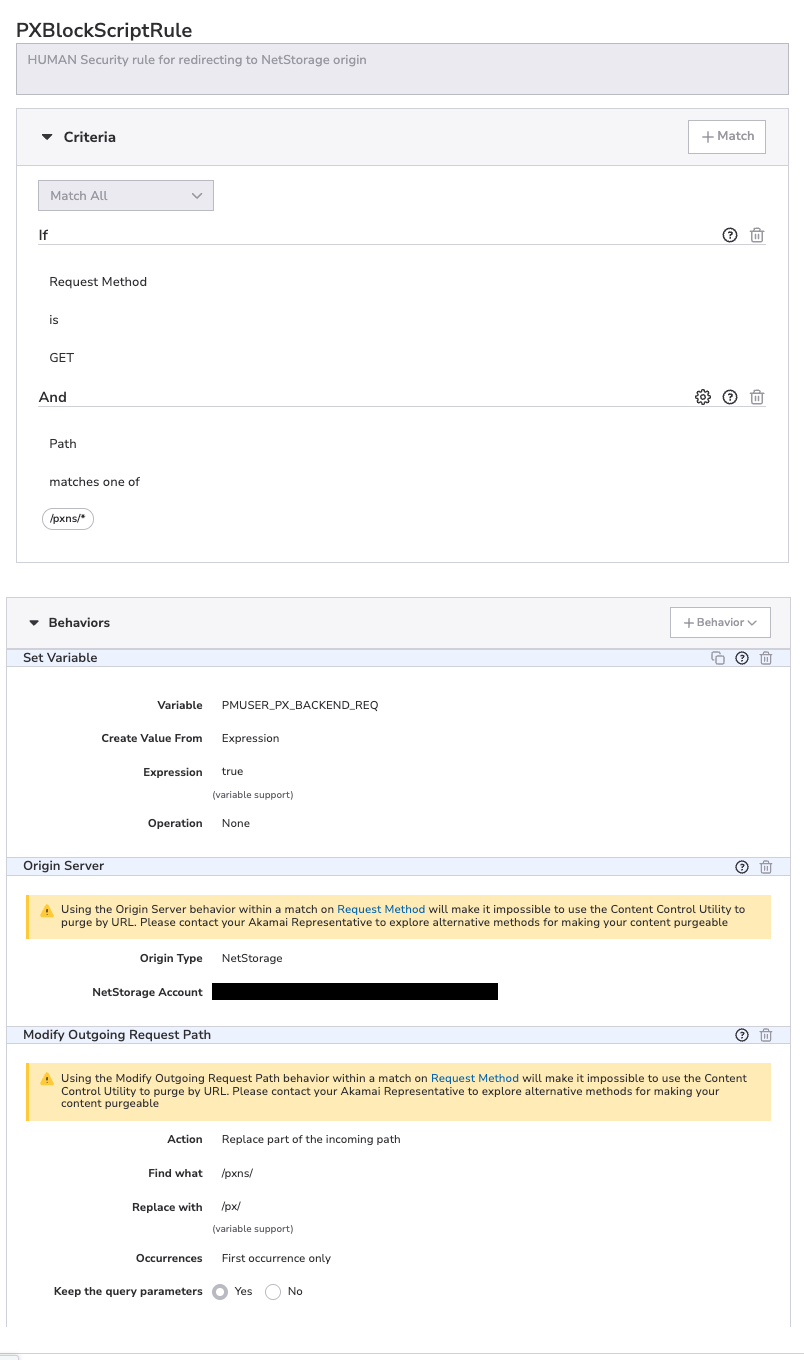

HUMAN Security rule for redirecting to NetStorage origin. To create this rule:
Select the PXEnforcerRule you created earlier. This will nest PXBlockScriptRule inside when you create it.
Select + Rules.
Select the Blank Rule Template and enter PXBlockScriptRule as the rule name.
Select Insert Rule.
In the Criteria section, select Match All so that all the criteria must be met to trigger the behaviors. Select + Match and add the following 2 criteria:
Criterion #1:
Name: requestMethod
Result: IS
Value: GET
Criterion #2:
Name: path
Result: MATCHES_ONE_OF
URL: /pxns/*
In the Behaviors section, select + Behavior > Standard Property Behavior and create the following 3 behaviors:
Behavior #1:
Name: Set Variable
Variable Name: PMUSER_PX_BACKEND_REQ
Create Value From: Expression
Expression: true
Operation: None
Behavior #2:
Name: Origin
Origin Type: NetStorage
NetStorage Account: <netstorage_cp_code>
Behavior #3:
Name: Modify Outgoing Request Path
Action: Replace part of the incoming path
Find What: /pxns/
Replace With: /px/
Occurrences: First occurrence only
Keep The Query Parameters: Yes
Select Save.

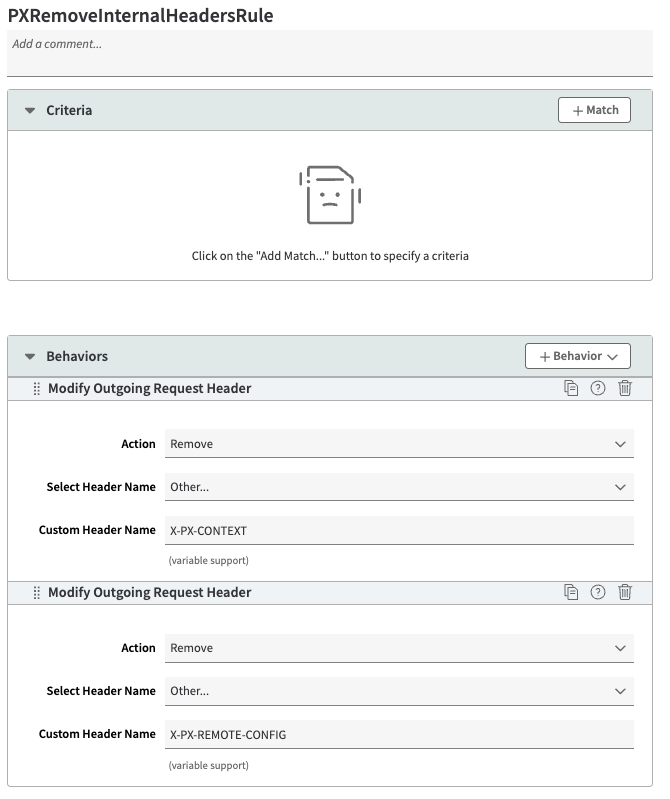

PXRemoveInternalHeadersRule
HUMAN Security rule to remove internal Enforcer headers from outgoing requests. To create this rule:
Select the PXEnforcerRule you created earlier. This will nest PXRemoveInternalHeadersRule inside when you create it.
Select + Rules.
Select the Blank Rule Template and enter PXRemoveInternalHeadersRule as the rule name.
Select Insert Rule.
In the Behaviors section, select + Behavior > Standard Property Behavior and create the following 2 behaviors:
Behavior #1:
Name: Modify Outgoing Request Header
Action: Remove
Select Header Name: Other…
Custom Header Name: X-PX-CONTEXT
Behavior #2:
Name: Modify Outgoing Request Header
Action: Remove
Select Header Name: Other…
Custom Header Name: X-PX-REMOTE-CONFIG
Select Save.

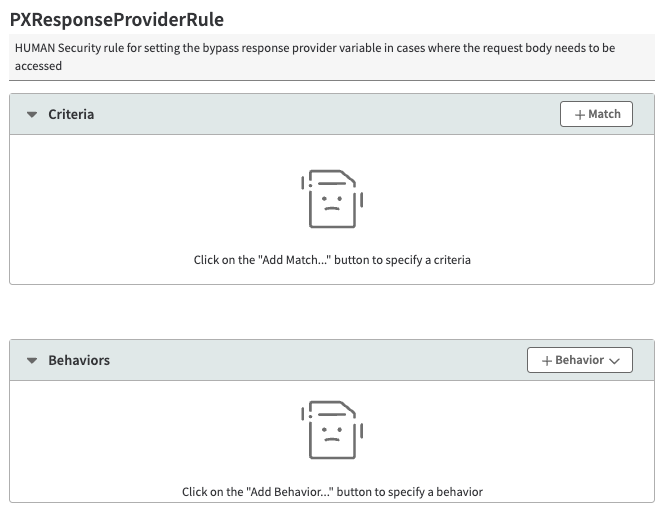

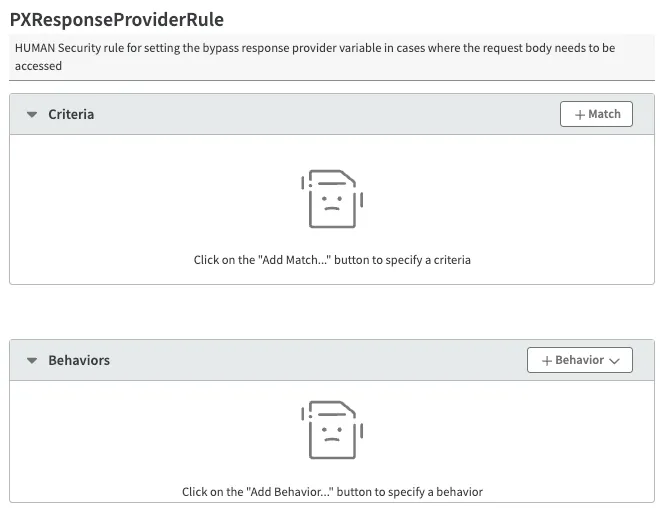

PXResponseProviderRule
HUMAN Security rule for setting the bypass response provider variable in cases where the request body needs to be accessed. To create this rule:
Select the PXEnforcerRule you created earlier. This will nest PXResponseProviderRule inside when you create it.
Select + Rules.
Select the Blank Rule Template and enter PXResponseProviderRule as the rule name.
Select Insert Rule.
Select Save.

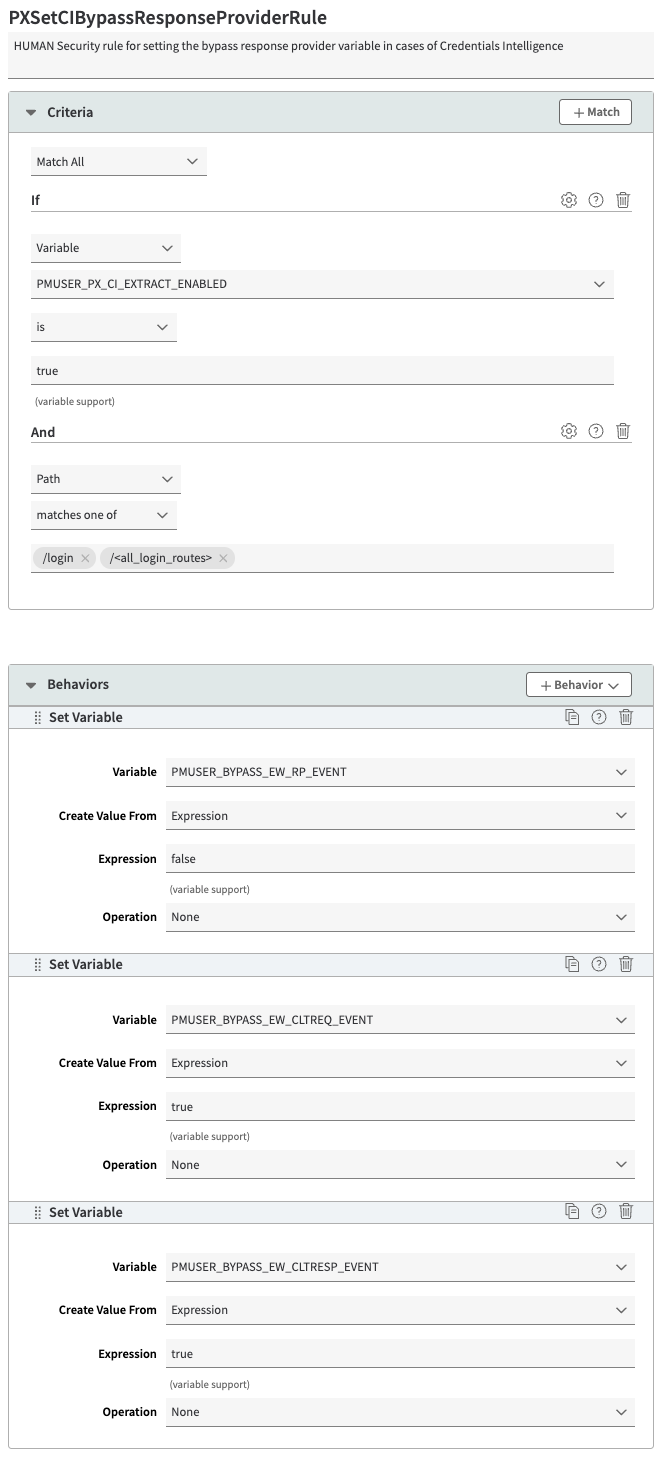

PXSetCIBypassResponseProviderRule
HUMAN Security rule for setting the bypass response provider variable in cases of Credentials Intelligence. To create this rule:
Select the PXResponseProviderRule you created earlier. This will nest PXSetCIBypassResponseProviderRule inside when you create it.
Select + Rules.
Select the Blank Rule Template and enter PXSetCIBypassResponseProviderRule as the rule name.
Select Insert Rule.
In the Criteria section, select Match All so that all the criteria must be met to trigger the behaviors. Select + Match and add the following 2 criteria:
Criterion #1:
Name: matchVariable
Result: IS
Property Variable: PMUSER_PX_CI_EXTRACT_ENABLED
Operand: true
Wildcards in Value: No
Case-Sensitive Value: Yes
Criterion #2:
Name: path
Result: MATCHES_ONE_OF
URL: /login (any request endpoints used for Credential Intelligence)
In the Behaviors section, select + Behavior > Standard Property Behavior and create the following 3 behaviors:
Behavior #1:
Name: Set Variable
Variable Name: PMUSER_BYPASS_EW_RP_EVENT
Create Value From: Expression
Expression: false
Operation: None
Behavior #2:
Name: Set Variable
Variable Name: PMUSER_BYPASS_EW_CLTREQ_EVENT
Create Value From: Expression
Expression: true
Operation: None
Behavior #3:
Name: Set Variable
Variable Name: PMUSER_BYPASS_EW_CLTRESP_EVENT
Create Value From: Expression
Expression: true
Operation: None
Select Save.

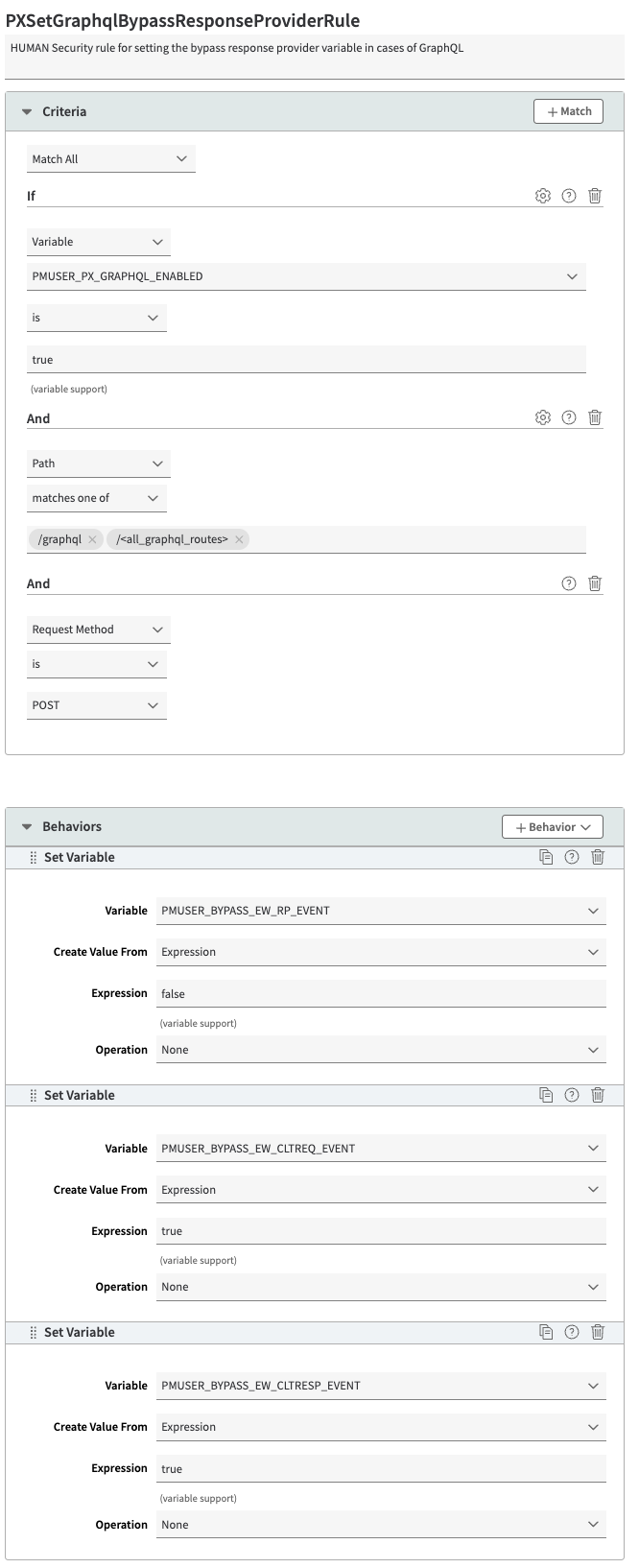

PXSetGraphqlBypassResponseProviderRule
HUMAN Security rule for setting the bypass response provider variable in cases of GraphQL. To create this rule:
Select the PXResponseProviderRule you created earlier. This will nest PXSetGraphqlBypassResponseProviderRule inside when you create it.
Select + Rules.
Select the Blank Rule Template and enter PXSetGraphqlBypassResponseProviderRule as the rule name.
Select Insert Rule.
In the Criteria section, select Match All so that all the criteria must be met to trigger the behaviors. Select + Match and add the following 3 criteria:
Criterion #1:
Name: matchVariable
Result: IS
Property Variable: PMUSER_PX_GRAPHQL_ENABLED
Operand: true
Wildcards in Value: No
Case-Sensitive Value: Yes
Criterion #2:
Name: path
Result: MATCHES_ONE_OF
URL: /graphql (any request endpoints used for GraphQL)
Criterion #3:
Name: requestMethod
Result: IS
Value: POST
In the Behaviors section, select + Behavior > Standard Property Behavior and create the following 3 behaviors:
Behavior #1:
Name: Set Variable
Variable Name: PMUSER_BYPASS_EW_RP_EVENT
Create Value From: Expression
Expression: false
Operation: None
Behavior #2:
Name: Set Variable
Variable Name: PMUSER_BYPASS_EW_CLTREQ_EVENT
Create Value From: Expression
Expression: true
Operation: None
Behavior #3:
Name: Set Variable
Variable Name: PMUSER_BYPASS_EW_CLTRESP_EVENT
Create Value From: Expression
Expression: true
Operation: None
Select Save.

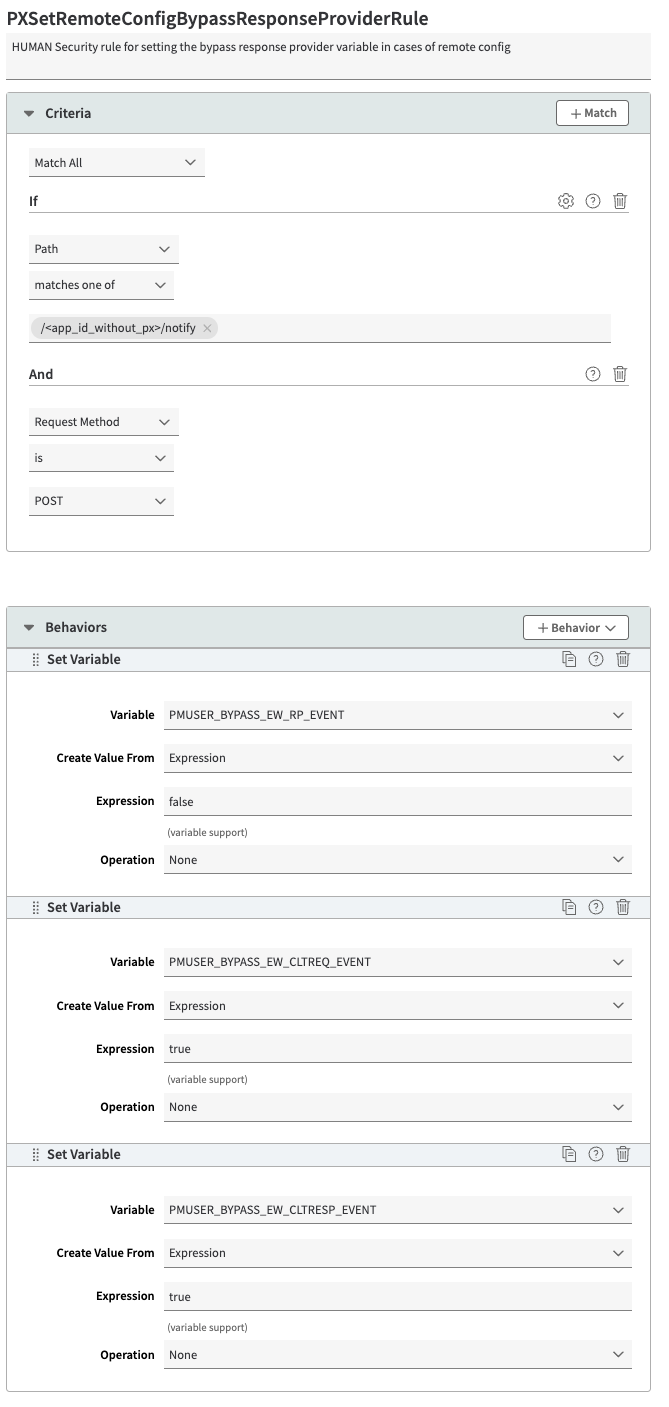

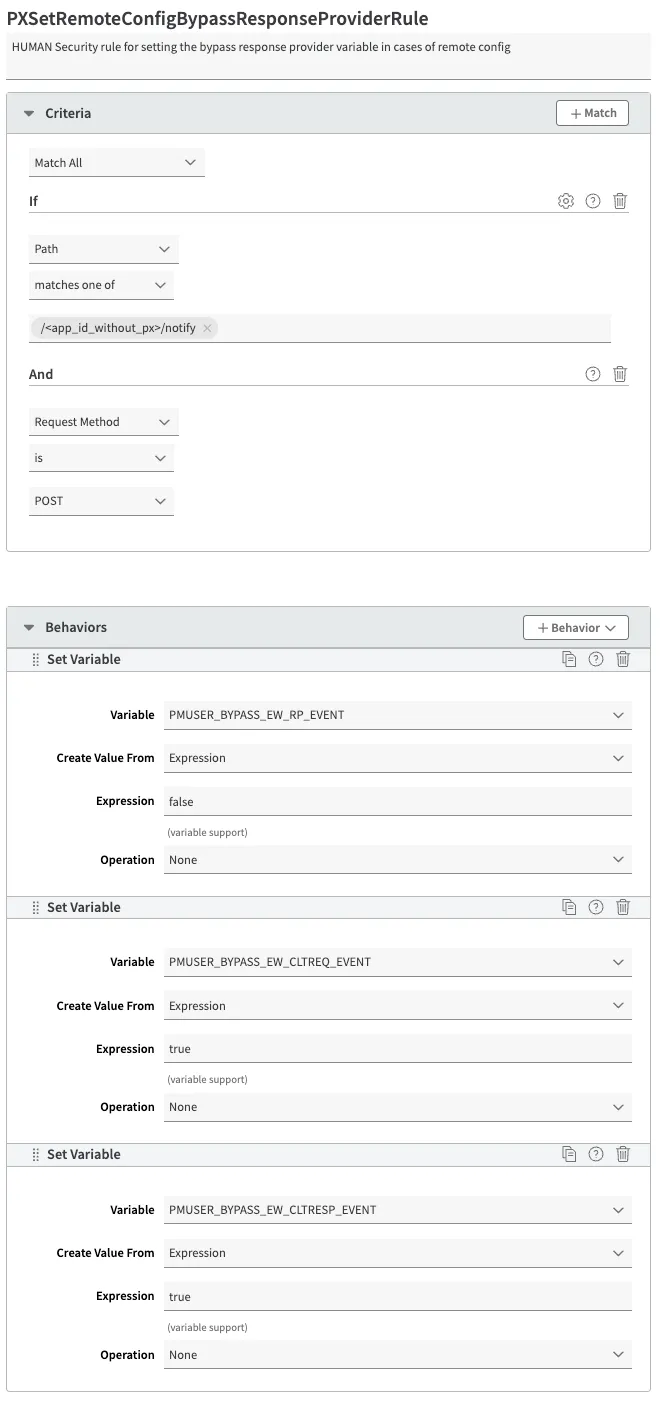

PXSetRemoteConfigBypassResponseProviderRule
HUMAN Security rule for setting the bypass response provider variable in cases of remote config. To create this rule:
Select the PXResponseProviderRule you created earlier. This will nest PXSetRemoteConfigBypassResponseProviderRule inside when you create it.
Select + Rules.
Select the Blank Rule Template and enter PXSetRemoteConfigBypassResponseProviderRule as the rule name.
Select Insert Rule.
In the Criteria section, select Match All so that all the criteria must be met to trigger the behaviors. Select + Match and add the following 2 criteria:
Criterion #1:
Name: path
Result: MATCHES_ONE_OF
URL: /<app_id_without_px>/notify
Criterion #2:
Name: requestMethod
Result: IS
Value: POST
In the Behaviors section, select + Behavior > Standard Property Behavior and create the following 3 behaviors:
Behavior #1:
Name: Set Variable
Variable Name: PMUSER_BYPASS_EW_RP_EVENT
Create Value From: Expression
Expression: false
Operation: None
Behavior #2:
Name: Set Variable
Variable Name: PMUSER_BYPASS_EW_CLTREQ_EVENT
Create Value From: Expression
Expression: true
Operation: None
Behavior #3:
Name: Set Variable
Variable Name: PMUSER_BYPASS_EW_CLTRESP_EVENT
Create Value From: Expression
Expression: true
Operation: None
Select Save.

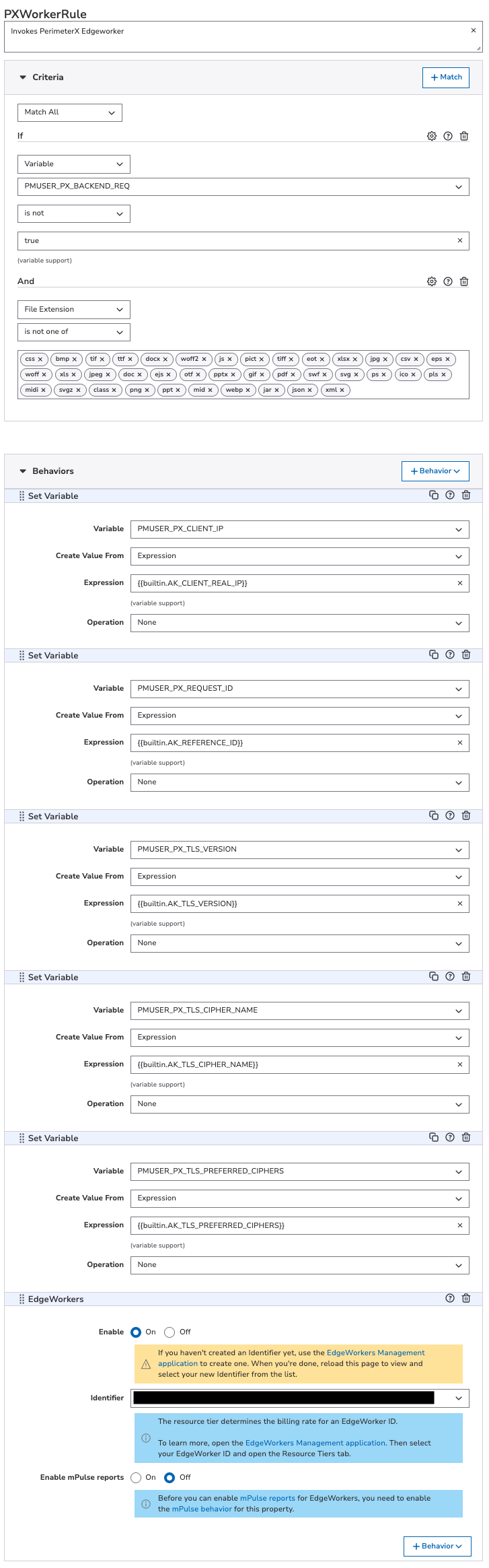

PXWorkerRule
Invokes PerimeterX Edgeworker. To create this rule:
Select the PXEnforcerRule you created earlier. This will nest PXWorkerRule inside when you create it.
Select + Rules.
Select the Blank Rule Template and enter PXWorkerRule as the rule name.
Select Insert Rule.
In the Criteria section, select Match All so that all the criteria must be met to trigger the behaviors. Select + Match and add the following 2 criteria:
In the Behaviors section, select + Behavior > Standard Property Behavior and create the following 6 behaviors:
Behavior #1:
Name: Set Variable
Variable Name: PMUSER_PX_CLIENT_IP
Create Value From: Expression
Expression: {{builtin.AK_CLIENT_REAL_IP}}
Operation: None
Behavior #2:
Name: Set Variable
Variable Name: PMUSER_PX_REQUEST_ID
Create Value From: Expression
Expression: {{builtin.AK_REFERENCE_ID}}
Operation: None
Behavior #3:
Name: Set Variable
Variable Name: PMUSER_PX_TLS_VERSION
Create Value From: Expression
Expression: {{builtin.AK_TLS_VERSION}}
Operation: None
Behavior #4:
Name: Set Variable
Variable Name: PMUSER_PX_TLS_CIPHER_NAME
Create Value From: Expression
Expression: {{builtin.AK_TLS_CIPHER_NAME}}
Operation: None
Behavior #5:
Name: Set Variable
Variable Name: PMUSER_PX_TLS_PREFERRED_CIPHERS
Create Value From: Expression
Expression: {{builtin.AK_TLS_PREFERRED_CIPHERS}}
Operation: None
Behavior #6:
Name: EdgeWorkers
Enable: On
Identifier: <edgeworker_id> (Tier 200)
Enable MPulse Reports: Off
Select Save.

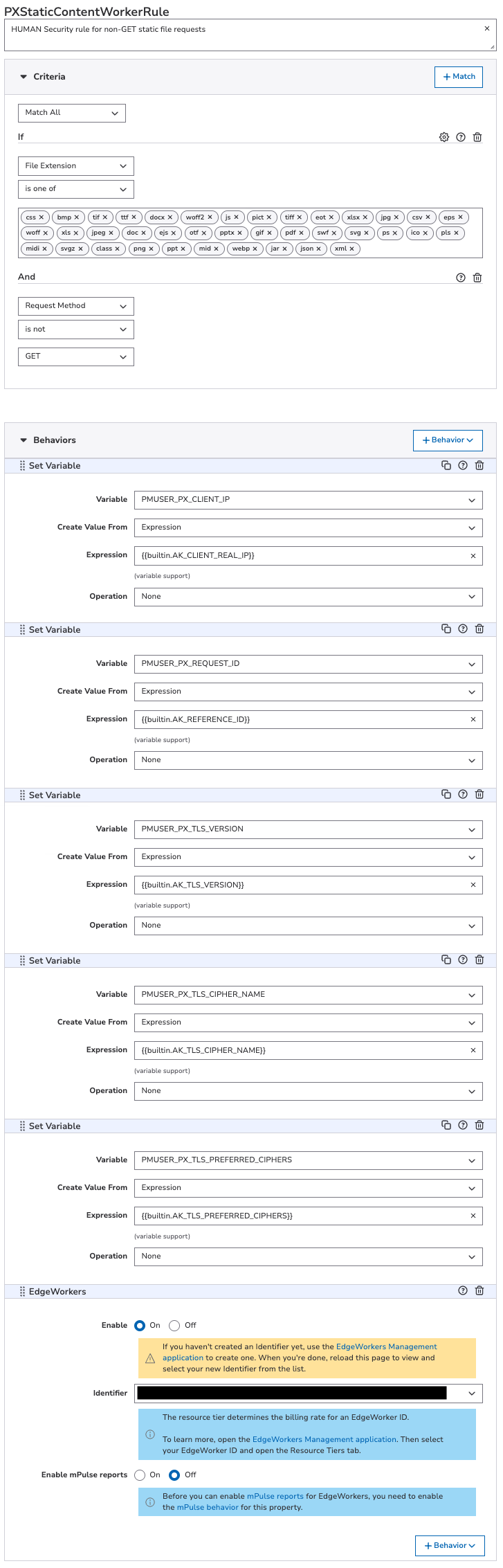

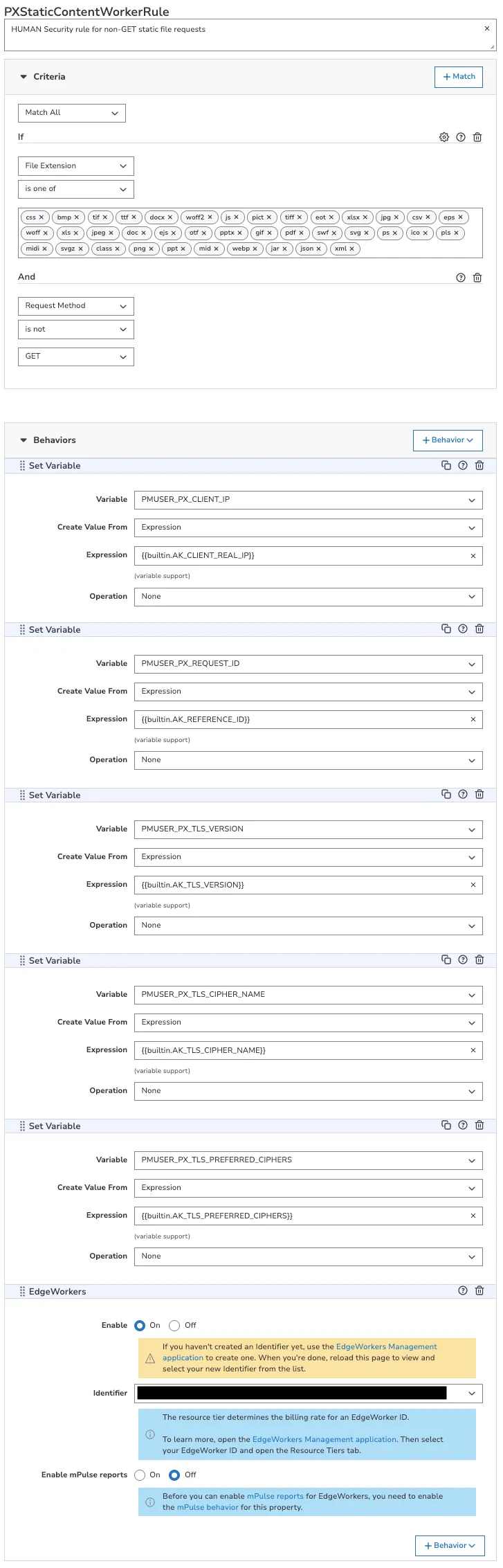

PXStaticContentWorkerRule
HUMAN Security rule for non-GET static file requests. To create this rule:
Select the PXEnforcerRule you created earlier. This will nest PXStaticContentWorkerRule inside when you create it.
Select + Rules.
Select the Blank Rule Template and enter PXStaticContentWorkerRule as the rule name.
Select Insert Rule.
In the Criteria section, select Match All so that all the criteria must be met to trigger the behaviors. Select + Match and add the following 2 criteria:
In the Behaviors section, select + Behavior > Standard Property Behavior and create the following 6 behaviors:
Behavior #1:
Name: Set Variable
Variable Name: PMUSER_PX_CLIENT_IP
Create Value From: Expression
Expression: {{builtin.AK_CLIENT_REAL_IP}}
Operation: None
Behavior #2:
Name: Set Variable
Variable Name: PMUSER_PX_REQUEST_ID
Create Value From: Expression
Expression: {{builtin.AK_REFERENCE_ID}}
Operation: None
Behavior #3:
Name: Set Variable
Variable Name: PMUSER_PX_TLS_VERSION
Create Value From: Expression
Expression: {{builtin.AK_TLS_VERSION}}
Operation: None
Behavior #4:
Name: Set Variable
Variable Name: PMUSER_PX_TLS_CIPHER_NAME
Create Value From: Expression
Expression: {{builtin.AK_TLS_CIPHER_NAME}}
Operation: None
Behavior #5:
Name: Set Variable
Variable Name: PMUSER_PX_TLS_PREFERRED_CIPHERS
Create Value From: Expression
Expression: {{builtin.AK_TLS_PREFERRED_CIPHERS}}
Operation: None
Behavior #6:
Name: EdgeWorkers
Enable: On
Identifier: <edgeworker_id> (Tier 200)
Enable MPulse Reports: Off
Select Save.

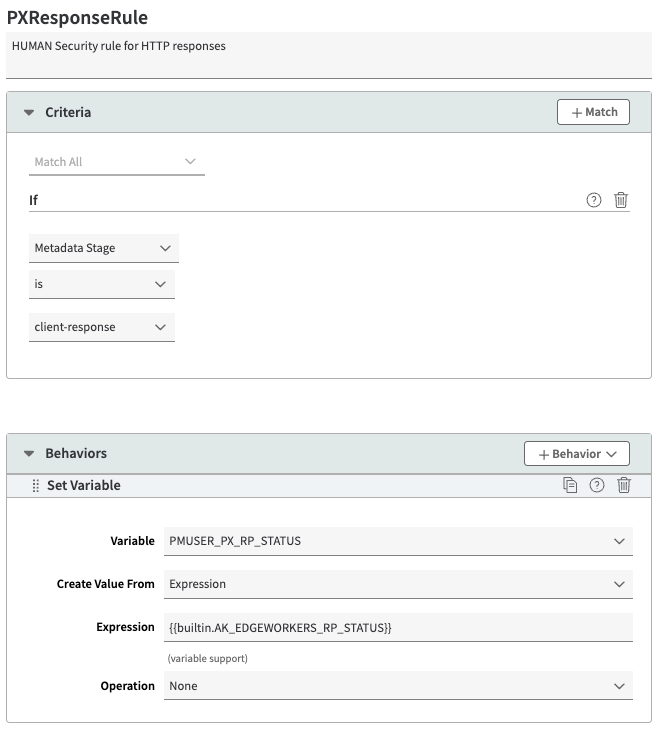

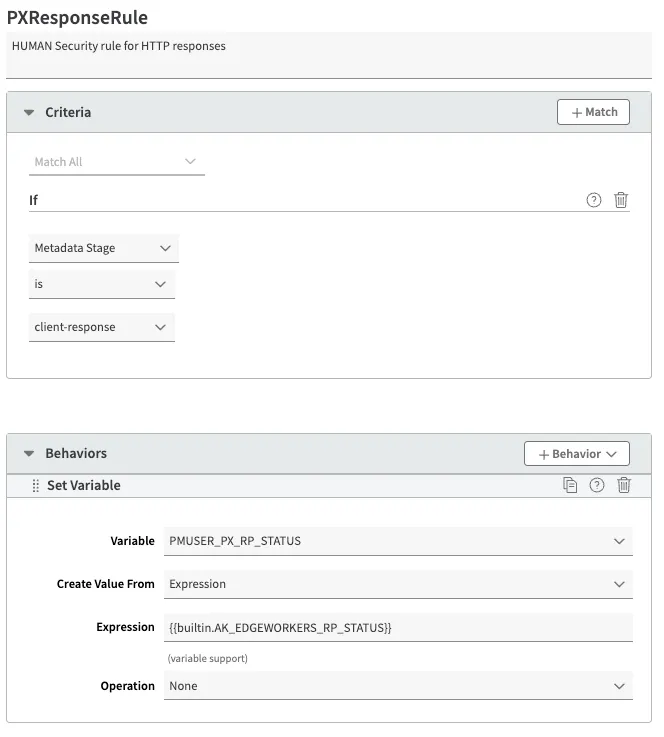

PXResponseRule
HUMAN Security rule for HTTP responses. To create this rule:
Select the PXEnforcerRule you created earlier. This will nest PXResponseRule inside when you create it.
Select + Rules.
Select the Blank Rule Template and enter PXResponseRule as the rule name.
Select Insert Rule.
In the Criteria section, select + Match and add the following 1 criterion:
Criterion #1:
Name: metadataStage
Operator: IS
Value: client-response
In the Behaviors section, select + Behavior > Standard Property Behavior and create the following 1 behavior:
Behavior #1:
Name: Set Variable
Variable Name: PMUSER_PX_RP_STATUS
Create Value From: Expression
Expression: {{builtin.AK_EDGEWORKERS_RP_STATUS}}
Operation: None
Select Save.

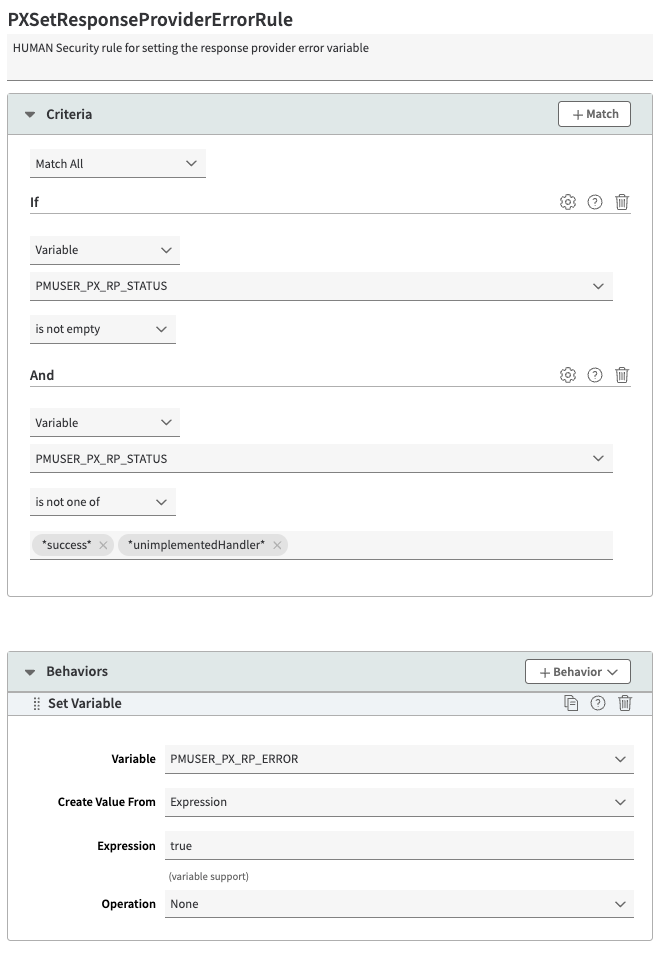

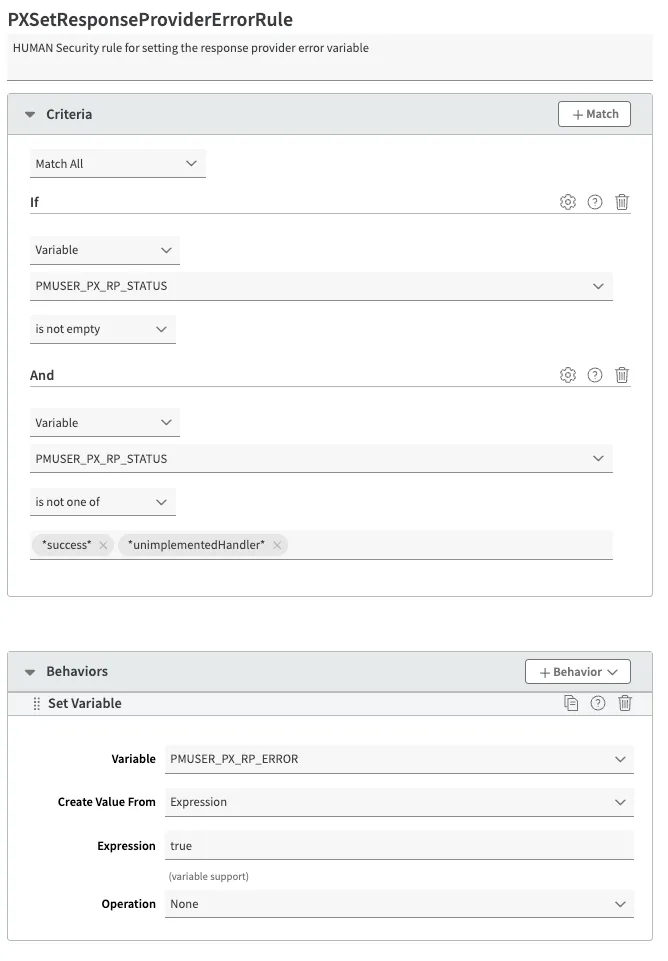

PXSetResponseProviderErrorRule
HUMAN Security rule for setting the response provider error variable. To create this rule:
Select the PXResponseRule you created earlier. This will nest PXSetResponseProviderErrorRule inside when you create it.
Select + Rules.
Select the Blank Rule Template and enter PXSetResponseProviderErrorRule as the rule name.
Select Insert Rule.
In the Criteria section, select Match All so that all the criteria must be met to trigger the behaviors. Select + Match and add the following 2 criteria:
Criterion #1:
Name: matchVariable
Result: IS_NOT_EMPTY
Property Variable: PMUSER_PX_RP_STATUS
Criterion #2:
Name: matchVariable
Result: IS_NOT_ONE_OF
Property Variable: PMUSER_PX_RP_STATUS
Variable Values: success, unimplementedHandler
Wildcards in Value: Yes
Case-Sensitive Value: No
In the Behaviors section, select + Behavior > Standard Property Behavior and create the following 1 behavior:
Behavior #1:
Name: Set Variable
Variable Name: PMUSER_PX_RP_ERROR
Create Value From: Expression
Expression: true
Operation: None
Select Save.

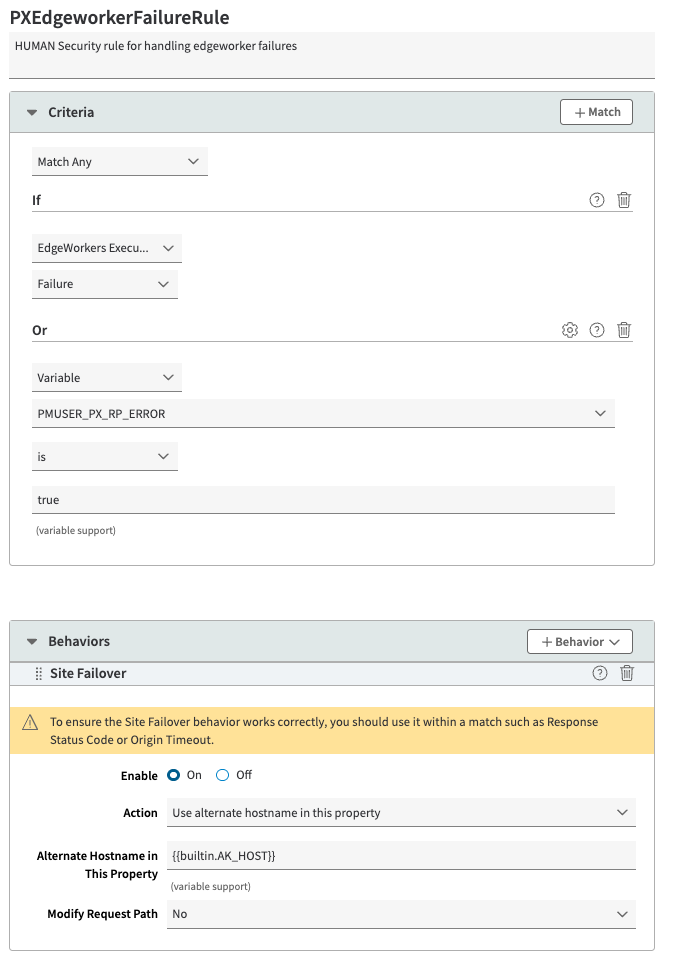

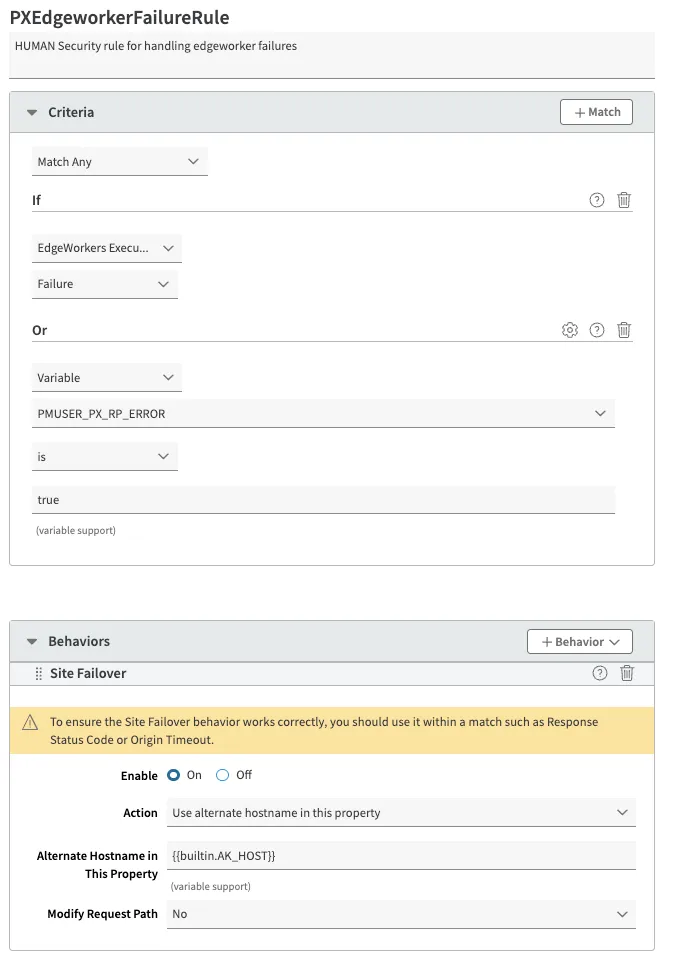

PXEdgeworkerFailureRule
HUMAN Security rule for handling edgeworker failures. To create this rule:
Select the PXResponseRule you created earlier. This will nest PXEdgeworkerFailureRule inside when you create it.
Select + Rules.
Select the Blank Rule Template and enter PXEdgeworkerFailureRule as the rule name.
Select Insert Rule.
In the Criteria section, select Match Any so that any of the criteria may be met to trigger the behaviors. Select + Match and add the following 2 criteria:
Criterion #1:
Name: edgeWorkersFailure
Status: FAILURE
Criterion #2:
Name: matchVariable
Result: IS
Property Variable: PMUSER_PX_RP_ERROR
Operand: true
Wildcards in Value: No
Case-Sensitive Value: Yes
In the Behaviors section, select + Behavior > Standard Property Behavior and create the following 1 behavior:
Behavior #1:
Name: Site Failover
Enable: On
Action: Use alternate hostname in this property
Alternate Hostname In This Property: {{builtin.AK_HOST}}
Modify Request Path: No
Select Save.
Wrap up
Once you create all the necessary variables and rules, you’re ready to activate the Enforcer.
From the editor, select Save.
Navigate to the Activate tab.
Choose the network you would like to activate on and select Activate. We recommend activating on your Staging network first for testing purposes.
If you chose to deploy to Staging, then confirm that the Enforcer is working properly and Activate on Production.
Your Akamai Enforcer has been successfully installed with the minimum requirements to monitor activity on your CDN. You can further customize the Enforcer’s behavior by referencing our configuration options.
Once you finish installing, be sure to contact HUMAN to complete your tuning process.
