Code DefenderPortalClient-side Defense

Dashboard

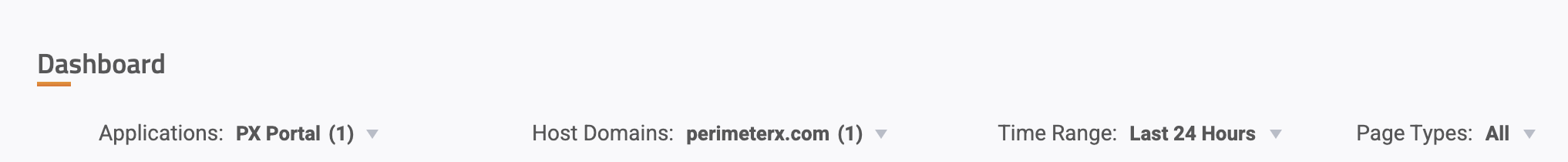

The Code Defender dashboard provides an in-depth analysis of malicious traffic and suspicious scripts on your application. Data is displayed for the past 24 hours. Data can be filtered per account Application, Host Domain, Page Type and Time Range.

ComponentsDescription
ApplicationsThe applications for the selected account. Select/de-select applications to refine the data displayed in the Dashboard.
By default, all applications are selected.
Host DomainsThe application’s host domains. If you are running multiple scripts, by selecting/de-selecting different domains, you can splice the data and refine the data displayed in the Dashboard.
By default, all domains are selected.
Page TypesDisplays data relevant to specific page types (Login and Authentication, Checkout, Purchase, Product, and Search) and allows users to analyze scripts and incidents relevant to that page type.
Time RangeSets the time period for which the data is displayed - Last 24 hours, Last 7 days, Last 14 days, Last 30 days.
By default, the time range is the last 24 hours. Time is measured from the last time the data was observed (“Last Seen”).

Main Dashboard Components

Dashboard Status

A summary of the account’s scripts, including:

  • Number of scripts accessing your site
  • Script origins
  • Destination domains
  • Source domains

dashboard 2

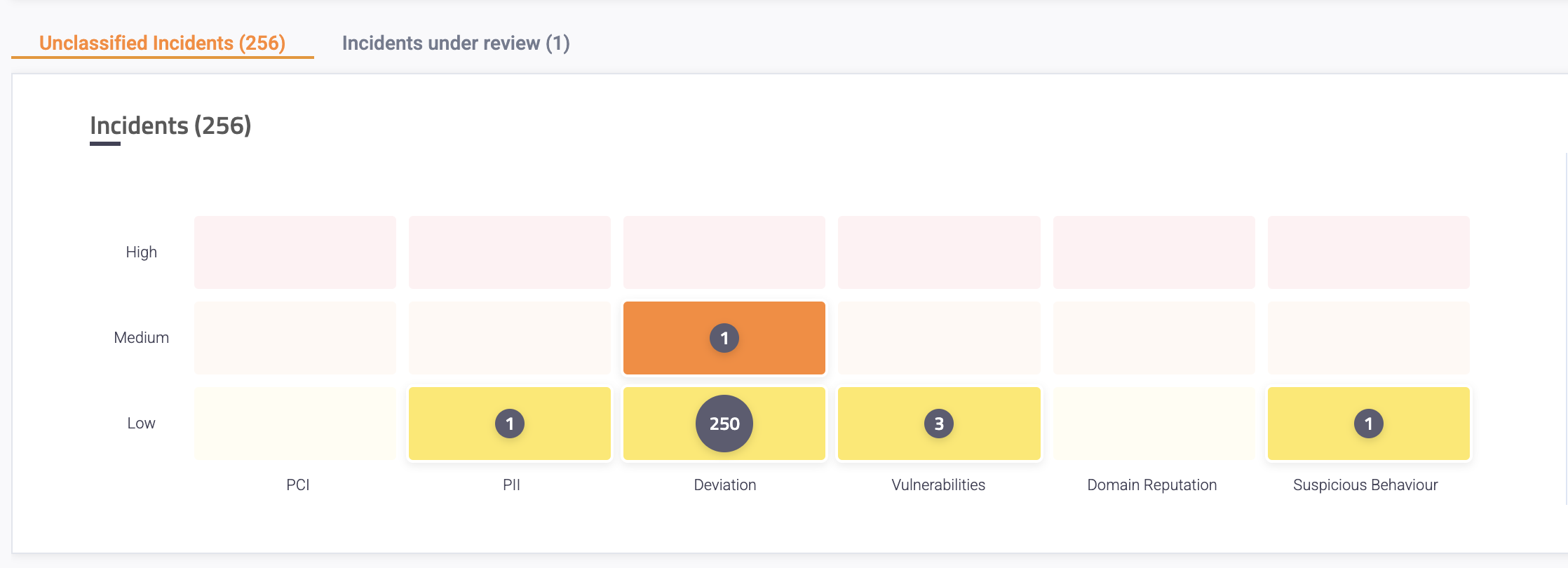

Incidents Heat Map

A visual summary of incidents divided by risk score and category.

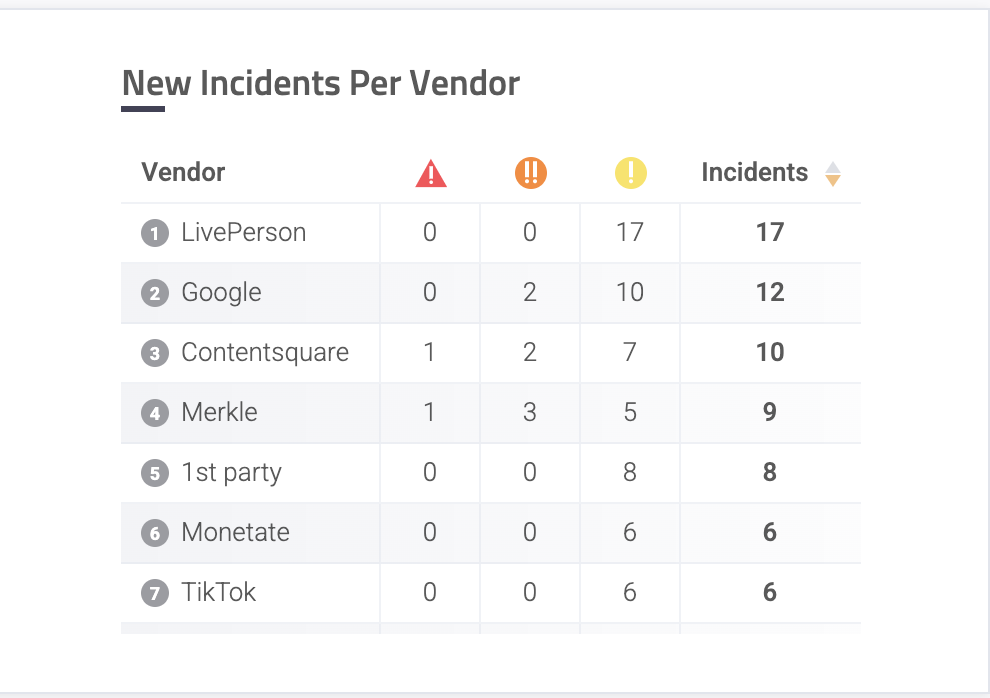

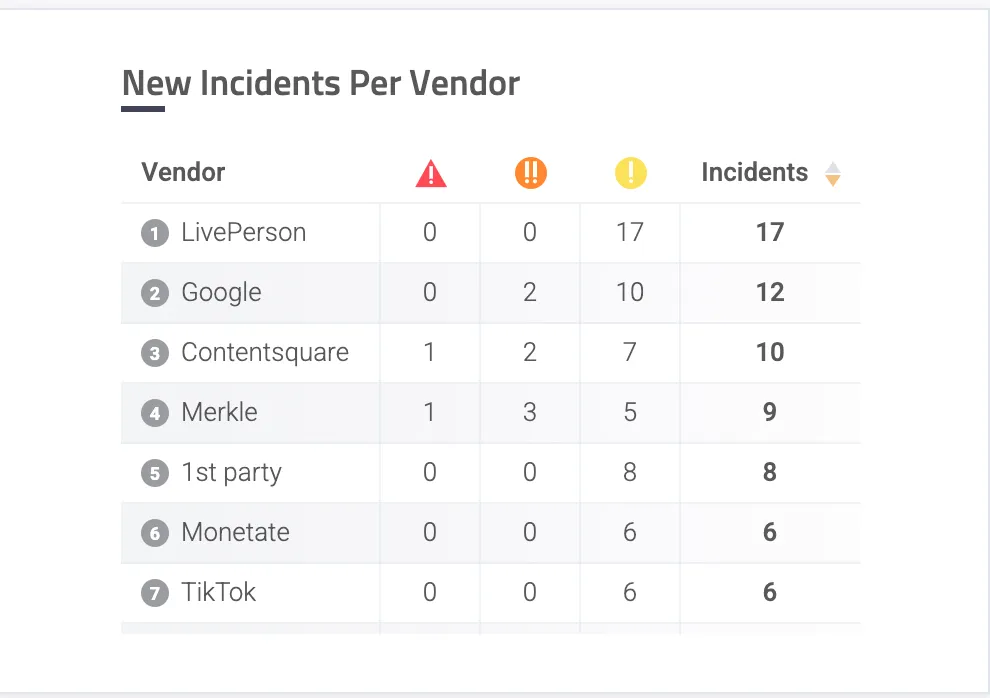

Incidents By Vendor

A table that summarizes the number of incidents per vendor, for each risk score.

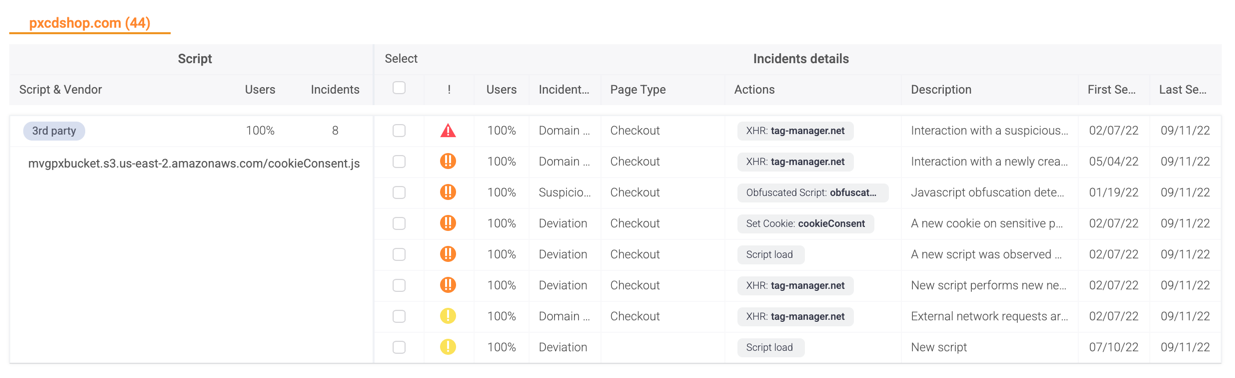

Incidents Table

Every script in the incidents’ table has:

  • List of incidents observed by this script
  • Script’s vendor
  • Script’s party (first/ third party)
  • Percentage of users that observed this script

Every incident in the incidents’ table specifies:

  • Incident’s risk level
  • Percentage of users affected by this behavior
  • Incident’s category
  • List of page types this behavior occurred in
  • List of actions this incident resulted from
  • Incident’s description
  • Dates that the incident was first and last seen on the website

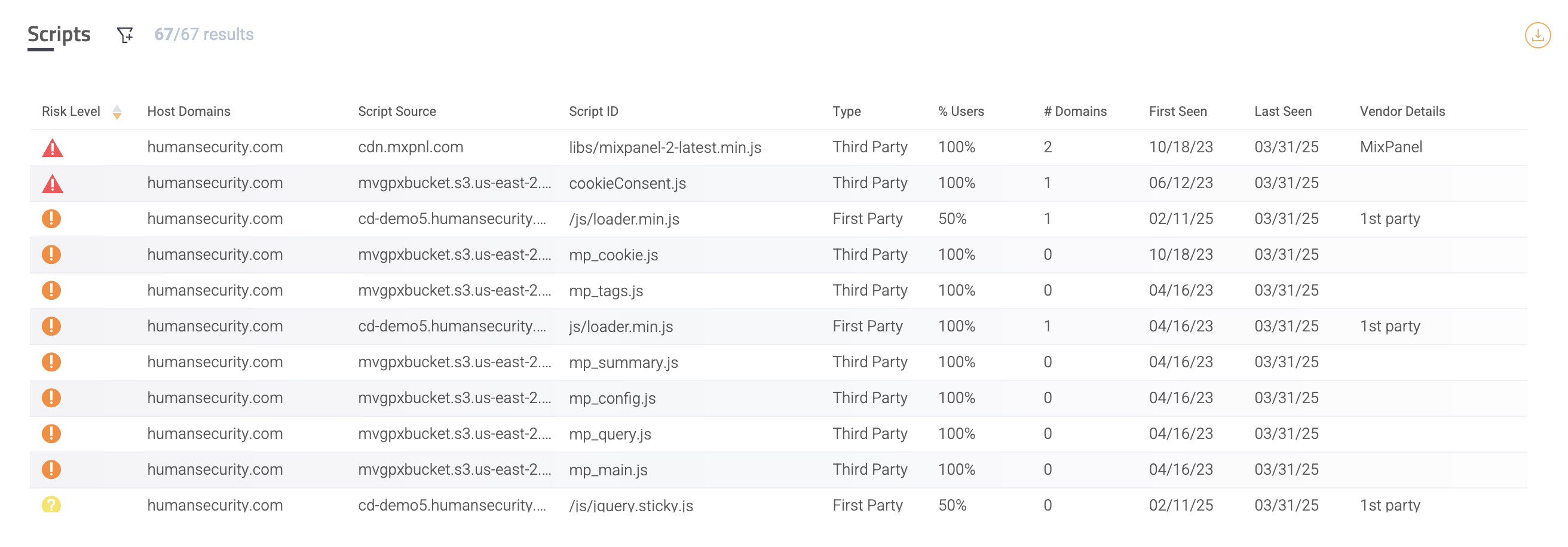

Scripts Table

A detailed view of the scripts running on the customer’s site. Data presented includes:

  • Risk level: The risk the script poses to your site
  • Host Domains: The website domain where HUMAN detected the script
  • Script Source: The domain part of the script’s URL
  • Script ID: The subdirectory and filename parts of the script’s URL
  • Type: The script’s type
  • % Users: The percentage of unique users affected by the script
  • # Domains: The number of domains the script is communicating with
  • First Seen: The date the script was first seen on the website
  • Last Seen: The date the script was last seen on the website
  • Vendor Details: More information about the script vendor if available

The table can be filtered by each of the columns mentioned above.
