Configuration Options
The initial HUMAN configuration is determined during the installation process. All configurations are set as Property Variables in the Akamai Property Editor.
Note
When possible, the Akamai Property rules reference the Akamai Property variables dynamically; however, there may be cases in which changes to the Akamai Property variables necessitate changes in the Akamai Property rules (e.g., PX_APP_ID, PX_FILTER_BY_EXTENSION). Be sure to double-check the Property rules when making variable changes to ensure they are aligned.
Module Enabled
A boolean flag to enable/disable the HUMAN Enforcer.
Property Variable Name: PX_MODULE_ENABLED
Default: true
Module Mode
By default, the HUMAN enforcer’s mode is set to monitor
. To activate blocking mode, set the PMUSER_PX_MODULE_MODE
property variable to active_blocking
.
Property Variable Name: PX_MODULE_MODE
Default from v.1.1.0: monitor
Default up to v.1.0.6: 0
First Party
Indicates whether the enforcer is in first party mode or not. Be sure to complete the steps in the Integrate 1st-Party JS Snippet section to make sure your snippet is set up to serve the JavaScript Sensor via First-Party.
Property Variable Name: PX_FIRST_PARTY_ENABLED
Default: true
S2S Timeout
The number of milliseconds to wait for for the server-to-server call, after which a timeout is triggered and the request will pass.
Property Variable Name: PX_S2S_TIMEOUT
Default: 1000
Sensitive Headers
Comma-separated list of sensitive headers. These headers will be removed from all requests to the HUMAN backend.
Property Variable Name: PX_SENSITIVE_HEADERS
Default: cookie, cookies
Filter by Route
Regex (PCRE) for allowed routes. Requests for these routes will pass without being enforced or monitored.
Property Variable Name: PX_FILTER_BY_ROUTE
Example: ^(./allowed_route/?.)|(./filtered_route/?.)$
Default: Empty
Filter by User Agent
Regex (PCRE) for filtered user agents. Requests with these user agents will pass without being enforced or monitored.
Property Variable Name: PX_FILTER_BY_USER_AGENT
Example: ^(filtered-ua)|(filtered-user-agent)$
Default: Empty
Filter by HTTP Method
Requests for these HTTP Methods will pass without being enforced or monitored.
Defined as part of the Property Manager rules.Â

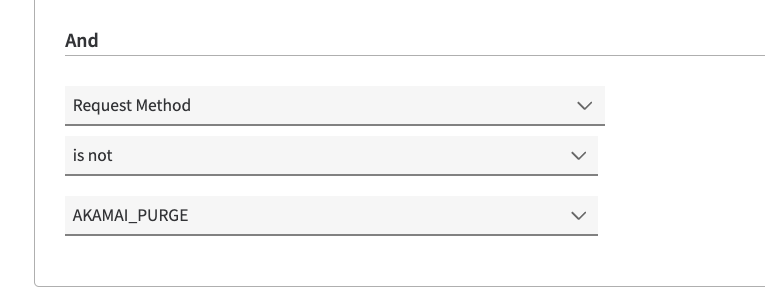

Edit your PXWorkerRule, under the Criteria section, add another match (+match bottom on the top right side) as follows:
Logic: AND
Advanced Match: Request Method is not
Choose any HTTP method you'd like to filter
Example:
Filter by Extension
Comma-separated list of extensions.
Note
Must match those configured in the PXWorkerRule and PXStaticContentWorkerRule in the Akamai Property Manager.
Property Variable Name: PX_FILTER_BY_EXTENSION
Default: .css,.bmp,.tif,.ttf,.docx,.woff2,.js,.pict,.tiff,.eot,.xlsx,.jpg,.csv,.eps,.woff,.xls,.jpeg,.doc,.ejs,.otf,.pptx,.gif,.pdf,.swf,.svg,.ps,.ico,.pls,.midi,.svgz,.class,.png,.ppt,.mid,webp,.jar,.json,.xml
Enforced Routes
Regex (PCRE) for routes to enforce even when in monitor mode.
Property Variable Name: PX_ENFORCED_ROUTES
Example: ^(./login/?.)|(./sign/?.)$
Default: Empty
Monitored Routes
Regex (PCRE) for routes to monitor even when in active blocking mode.
Property Variable Name: PX_MONITORED_ROUTES
Example: ^(./category/?.)|(./product/?.)$
Default: Empty
Bypass Monitor Header
Header name that will force active blocking flow even when the request should be monitored (either in monitor mode or if the route is monitored).
Property Variable Name: PX_BYPASS_MONITOR_HEADER
Default: Empty
Sensitive Routes
Sensitive routes trigger a server call to HUMAN servers every time the route is called, regardless of viewing history.
Property Variable Name: PX_SENSITIVE_ROUTES
Example: ^(./login/?.)|(./sign/?.)$
Default: Empty
CSS Ref
URL to a custom CSS file for the block page.
Property Variable Name: PX_CSS_REF
Default: Empty
JS Ref
URL to a custom JS file for the block page.
Property Variable Name: PX_JS_REF
Default: Empty
Custom Logo
Custom logo to display at the top of the block page (max-height = 150px, width = auto).
Property Variable Name: PX_CUSTOM_LOGO
Default: Empty
Custom Cookie Header
Allows to set a header name which is used to extract the HUMAN cookies (processed in addition to the Cookie header).
Property Variable Name: PX_CUSTOM_COOKIE_HEADER
Default: x-px-cookies
Custom Parameters
With the px_enrich_custom_parameters
function you can add up to 10 custom parameters to be sent back to HUMAN servers. When set, the function is called before setting the payload on every request to HUMAN servers. The parameters should be passed according to the correct order (1-10) and their format must align as following: custom_param1, custom_param2, ... , custom_param10
. The parameters passed along with the px_enrich_custom_parameters
function are originalRequest
which is the Akamai request object
Note
This function must be set in the custom/pxCustomFunctionsConfig.ts file.
Default: Empty
Note
Since version 3.4.0, the px_enrich_custom_parameters function accepts the pxContext as a second parameter and is async, meaning it can return either CustomParams or Promise.
export async function px_enrich_custom_parameters(originalRequest: IngressClientRequest, pxContext: PXRequestContext): Promise<CustomParams> {
let customParams: CustomParams = {
custom_param1: "hardcoded example",
};
customParams.custom_param2 = request.method
// ...
return customParams;
}
Send Request Cookie Names
Specifies the cookie names (not values) that will be reported on activities to the HUMAN backend. This is due to Akamai's header size limits.
Property Variable Name: PX_SEND_REQ_COOKIE_NAMES
(From v1.1.0, If upgrading the enforcer from an earlier version, make sure the variable exists in the Property Manager)
Property Variable Name: PX_COOKIE_WHITELIST
(Up to v1.0.6)
Default: _px2,_pxvid, _ga, dwanonymous_*, sid
CSS Ref, JS Ref, and Custom Logo
Note that the URLs for
PX_CSS_REF
,PX_JS_REF
, andPX_CUSTOM_LOGO
should be no longer than 150 characters combined. This is to ensure that the block responses from the edgeworker (especially on mobile) do not exceed Akamai's 2048 KB limit.
CORS Support
Whether to add CORS headers to block responses. If enabled, CORS requests will receive block responses with either the default or customized CORS response headers.
Property Variable Name: PMUSER_PX_CORS_SUPPORT_ENABLED
Default: false
The default CORS block response headers are:
Header Name | Header Value |
---|---|
access-control-allow-origin | The origin header taken from the request. |
access-control-allow-credentials | true |
CORS block response headers can be customized using the px_custom_cors_block_response_headers
function. If it returns a falsy value, then the default headers will be set on the block response.
export function px_custom_cors_block_response_headers(
pxCtx: PXRequestContext,
request: EnforcedRequest,
): Record<string, string> {
// example: return { 'allow-custom-origin': request.getHeader('origin')[0] };
return null;
}
Note
This function must be set in the custom/pxCustomFunctionsConfig.ts file.
CORS Preflight Requests
Since Akamai EdgeWorkers do not currently support the OPTIONS method, CORS preflight requests are always filtered, and will not pass through the edgeworker. It is important to handle preflight requests properly, either in the elsewhere in your Akamai Property Manager or in your origin server.
Credentials Intelligence
This feature extracts credentials (hashed username and password) from requests and adds a header to the original request if the credentials have been flagged as compromised. The feature can be toggled on and off and may be set for any number of unique login extraction paths.
Property Variable Name | Description | Default Value | Possible Values |
---|---|---|---|
PX_CI_EXTRACT_ENABLED | Whether credentials should be extracted for CI. | false | true , false |
PX_CI_EXTRACT_DETAILS | An array of JSON objects detailing how to extract credentials for CI (see below). | None | - |
PX_CI_VERSION | Whether CI functions as a single- (v2) or multi-step login. | v2 | v2 , multistep_sso |
PX_CI_AS2S_HEADER_ENABLED | Whether to send the additional_s2s as a header. If false , the additional_s2s will be sent automatically. | false | true , false |
PX_CI_COMPROMISED_HEADER | The name of the header to be sent to the origin when compromised credentials are identified. | px-compromised-credentials | - |
PX_CI_SEND_RAW_USERNAME | Whether the raw username of the credentials should be sent to HUMAN for multi-step integrations and/or data correlation purposes. | false | true , false |
PX_CI_LS_REPORTING_METHOD | The login successful reporting method to use for identifying successful login requests when the additional_s2s activity is sent automatically. | None | status , body , header , custom |
PX_CI_LS_STATUS | If PX_CI_LS_REPORTING_METHOD is status , a comma-separated list of status codes indicating successful login. | 200 | - |
PX_CI_LS_BODY_REGEX | If PX_CI_LS_REPORTING_METHOD is body , a regex (PCRE) applied to the response body indicating successful login. | None | - |
PX_CI_LS_HEADER_NAME | If PX_CI_LS_REPORTING_METHOD is header , the name of a response header indicating a successful login. | x-px-login-successful | - |
PX_CI_LS_HEADER_VALUE | If PX_CI_LS_REPORTING_METHOD is header , the expected value of the response header indicating a successful login. | 1 | - |
Notes about Credentials Extraction Configuration
The value of the PMUSER_PX_CI_EXTRACT_DETAILS
variable should be a valid JSON array of objects. Each object should contain the following properties:
Property Name | Type | Description | Possible Values |
---|---|---|---|
method | string | The HTTP method of the login request. | - |
path_type | string | Specifies whether the path property should be an exact match or evaluated as a regular expression. | exact , regex |
path | string | The path of the login request, defined as an exact string or regular expression. | - |
sent_through | string | The location of the credentials in the request. | body , header , query-param , custom |
user_field | string | The name of the username field. | - |
pass_field | string | The name of the password field. | - |
Below is an example of a valid array which lists out three different login endpoints from which credentials should be extracted:
[{
"method": "get",
"path_type": "exact",
"path": "/login/query",
"sent_through": "query-param",
"pass_field": "password",
"user_field": "username"
}, {
"method": "post",
"path_type": "exact",
"path": "/login-nested-object",
"sent_through": "body",
"pass_field": "nested.password",
"user_field": "nested.username"
}, {
"method": "post",
"path_type": "regex",
"path": "^/user/[A-Za-z0-9]{8,12}/session$",
"sent_through": "body",
"pass_field": "password",
"user_field": "username"
}, {
"method": "post",
"path_type": "exact",
"path": "/login/custom",
"sent_through": "custom"
}]
Note
The path values in the PMUSER_PX_CI_EXTRACT_DETAILS array must match the list of paths configured in the Property Manager rule named PXSetCIBypassResponseProviderRule.
If the sent_through
is custom
, the user_field
and pass_field
do not need to be defined. Instead, a custom function must be defined in the Akamai EdgeWorker code that accepts the request and PX Context and returns the extracted credentials in the form of an object with the keys username
and password
. All login endpoints that have custom
as the value for sent_through
will trigger this function.
If the request body is needed, it should be read using the async function readAndSetRequestBody()
to optimize performance.
Note
This function must be set in the custom/pxCustomFunctionsConfig.ts file.
export async function px_custom_extract_credentials(
originalRequest: EW.ResponseProviderRequest,
pxContext: PXRequestContext,
): Promise<LoginCredentials> {
// body is plaintext '<USERNAME>,<PASSWORD>' example:
// const body = (await readAndSetRequestBody(originalRequest, ReadRequestBodyMethod.TEXT, pxContext)) as string;
// const [username, password] = body?.split(',') || [];
// return username && password ? { username, password } : null;
return null;
}
If the PX_CI_LS_REPORTING_METHOD
is custom
, a custom function must be defined in the Akamai EdgeWorker code that accepts the response object from the origin as well as the PX response context and returns a boolean or a Promise resolving to a boolean that indicates if the login was successful or not.
If the response body is needed, it should be read using the async function readAndSetResponseBody(response, responseContext)
to optimize performance.
Note
This function must be set in the custom/pxCustomFunctionsConfig.ts file.
export async function px_login_successful_custom_callback(
response: EW.Response,
responseContext: PXResponseContext,
): Promise<boolean> {
// example: return response.status === 200 && response.getHeader('set-cookie')[0].includes('login_session');
return false;
}
GraphQL
This feature parses request body data on GraphQL paths to determine request sensitivity and enhance detection. The enforcer never reports sensitive or personally identifiable data (e.g., variable values). This feature can be toggled on or off, and set for any number of different GraphQL routes.
Property Name | Description | Default Value | Possible Values |
---|---|---|---|
PMUSER_PX_GRAPHQL_ENABLED | Indicates whether GraphQL details should be extracted from GraphQL request bodies. | true | true , false |
PMUSER_PX_GRAPHQL_ROUTES | Regex (PCRE) for routes to enable GraphQL on. Must match those configured in the Property Manager rules. | /graphql | - |
PMUSER_PX_SENSITIVE_GQL_OP_TYPES | Regex (PCRE) for operation types (e.g., "query", "mutation", "subscription") to flag as sensitive. | empty | - |
PMUSER_PX_SENSITIVE_GQL_OP_NAMES | Regex (PCRE) for operation names to flag as sensitive. | empty | - |
Note
The paths configured for PMUSER_PX_GRAPHQL_ROUTES must match the list of paths configured in the Property Manager rule named PXSetGraphqlBypassResponseProviderRule.
User Identifiers
HUMAN uses the User Identifiers to identify clients during and across sessions. The identifiers are:
JWT - JSON Web Token is an encrypted token with a JSON object containing metadata on the user
request, including the app user ID. It can be stored in a cookie or header.
CTS - Cross Tab Session is represented by a token stored on the pxcts
cookie.
Property Name | Description | Default Value |
---|---|---|
PMUSER_PX_JWT_COOKIE_NAME | The name of the cookie that contains the JWT token. | None |
PMUSER_PX_JWT_COOKIE_USERID_NAME | The name of the JWT payload field that contains the user ID. | None |
PMUSER_PX_JWT_COOKIE_ADDL_FIELDS | Comma-separated list of additional fields to be extracted from the JWT. | None |
PMUSER_PX_JWT_HEADER_NAME | The name of the header that contains the JWT token. | None |
PMUSER_PX_JWT_HEADER_USERID_NAME | The name of the JWT payload field that contains the user ID. | None |
PMUSER_PX_JWT_HEADER_ADDL_FIELDS | Comma-separated list of additional fields to be extracted from the JWT. | None |
Updated 12 days ago
