Complete Example

This is a complete example of Envoy and HUMAN Callout Enforcer.

We have the following test setup:

  • Envoy listens on 10.0.0.1:8080
  • HUMAN Callout Enforcer is on 10.0.0.1:50051
  • A protected web server is www.envoyproxy.io:443
  1. Complete Envoy configuration (envoy.yaml file):
static_resources:
  listeners:
  - name: listener_0
    address:
      socket_address:
        protocol: TCP
        address: 0.0.0.0
        port_value: 8080
    filter_chains:
    - filters:
      - name: envoy.filters.network.http_connection_manager
        typed_config:
          "@type": type.googleapis.com/envoy.extensions.filters.network.http_connection_manager.v3.HttpConnectionManager
          scheme_header_transformation:
            scheme_to_overwrite: https
          stat_prefix: ingress_http
          route_config:
            name: local_route
            virtual_hosts:
            - name: local_service
              domains: ["*"]
              routes:
              - match:
                  prefix: "/"
                route:
                  host_rewrite_literal: www.envoyproxy.io
                  cluster: service_envoyproxy_io
          http_filters:
          - name: envoy.filters.http.ext_proc
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.ext_proc.v3.ExternalProcessor
              grpc_service:
                envoy_grpc:
                  cluster_name: px_callout_cluster
                timeout: 3s
              failure_mode_allow: false
              allow_mode_override: true
              message_timeout: 3s
              processing_mode:
                request_header_mode: "SEND"
                response_header_mode: "SEND"
                request_body_mode: "NONE"
                response_body_mode: "NONE"
                request_trailer_mode: "SKIP"
                response_trailer_mode: "SKIP"
          - name: envoy.filters.http.router
            typed_config:
              "@type": type.googleapis.com/envoy.extensions.filters.http.router.v3.Router
  clusters:
  - name: service_envoyproxy_io
    connect_timeout: 30s
    type: LOGICAL_DNS
    dns_lookup_family: V4_ONLY
    lb_policy: ROUND_ROBIN
    load_assignment:
      cluster_name: service_envoyproxy_io
      endpoints:
      - lb_endpoints:
        - endpoint:
            address:
              socket_address:
                address: www.envoyproxy.io
                port_value: 443
    transport_socket:
      name: envoy.transport_sockets.tls
      typed_config:
        "@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
        sni: www.envoyproxy.io
  - name: px_callout_cluster
    type: STRICT_DNS
    lb_policy: ROUND_ROBIN
    connect_timeout: 1s
    http2_protocol_options: {}
    load_assignment:
      cluster_name: px_callout_cluster
      endpoints:
      - lb_endpoints:
        - endpoint:
            address:
              socket_address:
                address: 10.0.0.2
                port_value: 50051
    health_checks:
      - timeout: 1s
        interval: 1s
        unhealthy_threshold: 1
        healthy_threshold: 1
        reuse_connection: true
        tls_options:
          alpn_protocols: ["h2"]
        grpc_health_check:
          service_name: health_check
    transport_socket:
      name: envoy.transport_sockets.tls
      typed_config:
        "@type": type.googleapis.com/envoy.extensions.transport_sockets.tls.v3.UpstreamTlsContext
  1. Run Envoy:
docker run --rm \
    -p 8080:8080 \
    --mount type=bind,source="$(pwd)"/envoy.yaml,target=/etc/envoy/envoy.yaml \
    --config-path /etc/envoy/envoy.yaml \
    -l info \
    envoyproxy/envoy:v1.29-latest
  1. An example of HUMAN Callout Enforcer configuration (pxconf.json file):
{
    "px_appId": "--REPLACE--",
    "px_cookie_secret": "--REPLACE--",
    "px_auth_token": "--REPLACE--",
    "px_whitelist_uri_full": ["/test", "/abc"],
    "px_block_enabled": true,
    "px_score_header_enabled": true,
    "px_score_header_name": "x-px-score"
}
  1. Run HUMAN Callout Enforcer:
docker run --rm \
    -p 50051:50051
    --mount type=bind,source="$(pwd)"/pxconf.json,target=/etc/pxconf.json,readonly \
    perimeterx/px-callout-enforcer:latest

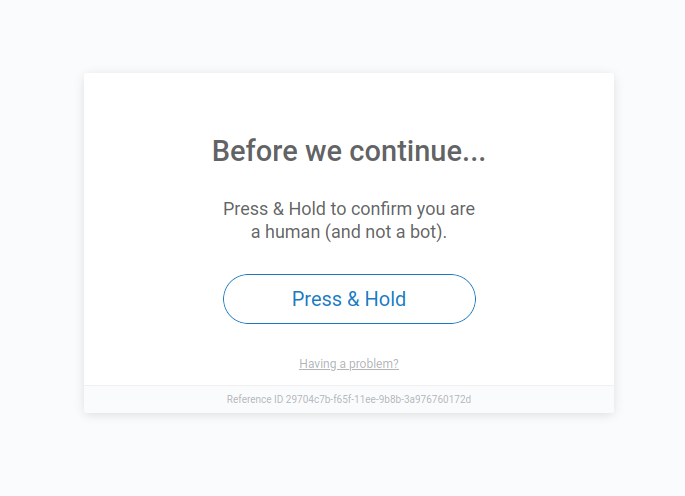

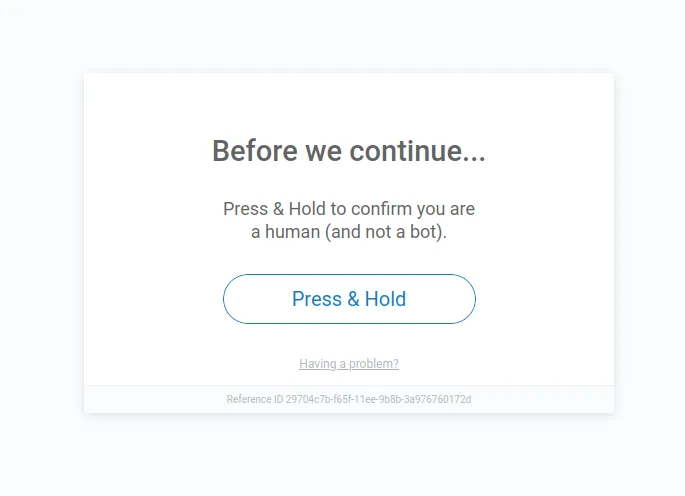

  1. To test the new setup, open http://10.0.0.1:8080/ address in a web browser (enable “PhantomJS” UA), you should see HUMAN Captcha page:
    HUMAN Captcha
