Android SDK React Native Integration Guide

Supported Android SDKs

HUMAN supports Android SDK version 22 (5.1 Lollipop) and higher.
From v1.15.3, HUMAN requires Kotlin 1.4.0 or higher.

Introduction

The HUMAN Android SDK works by constantly profiling and evaluating device behavior to ensure the connections to your mobile APIs and services are genuine.

This process requires initializing a context to manage a set of secure HTTP headers. The headers are added to all HTTP and HTTPS requests made by the mobile application to the origin server. The HTTP headers are refreshed on a regular basis by the HUMAN Manager (context) as it profiles the end-user’s mobile device.

Prerequisites

The following are required to install the HUMAN Android SDK:

• Administrative access to the HUMAN Portal to retrieve the HUMAN application ID and to set the token expiration and validity.
• An active HUMAN Enforcer.
• A sandbox or staging environment for development and testing (recommended).
• React Native dependencies

Integration

Adding the Android SDK to your Project

1. Add the HUMAN Android SDK Binary to Your Project with:

(the official repository for hosting the HUMAN Android SDK).

The repository can be integrated with Maven, Gradle, or Ivy.

In Maven, run:

1
<dependency>
2
       <groupId>com.perimeterx.sdk</groupId>
3
       <artifactId>msdk</artifactId>
4
       <version><version_to_download></version>
5
       <type>pom</type>
6
   </dependency>

In Gradle, run:

1
implementation 'com.perimeterx.sdk:msdk:<version_to_download>'

In Ivy, run:

1
<dependency org='com.perimeterx.sdk' name='msdk' rev='<version_to_download>'>
2
    <artifact name='msdk' ext='pom' ></artifact>
3
</dependency>

2. Once the binary is added to your project, resync the build files to ensure the package is downloaded.

To import and integrate the Android SDK in an Android application edit the project’s build.gradle file and add the following maven and mavenCentral configurations:

allprojects {
    repositories {
        mavenCentral() //allows PerimeterX's Android SDK to resolve its needed dependencies from maven central
        maven {
            url "https://perimeterx.jfrog.io/artifactory/px-Android-SDK/" //PerimeterX's Artifactory repository url
        }
    }
}

The SDK is now installed, and there should not be any build errors when compiling your application.

Adding the Required Permissions to AndroidManifest

In your AndroidManifest.xml add:

1
<uses-permission android:name="android.permission.INTERNET" />
2
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

XML example:

1
<?xml version="1.0" encoding="utf-8"?>
2
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
3
    package="com.snackhappy.bambarace">
4
5
    <uses-feature android:name="android.hardware.wifi" android:required="true" />
6
7
    <uses-permission android:name="android.permission.INTERNET" />
8
    <uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
9
10
    <application
11
        android:allowBackup="true"
12
        android:icon="@mipmap/ic_launcher"
13
        android:label="@string/app_name"
14
        android:roundIcon="@mipmap/ic_launcher_round"
15
        android:supportsRtl="true"
16
        android:theme="@style/AppTheme">
17
        <activity android:name=".MainActivity">
18
            <intent-filter>
19
                <action android:name="android.intent.action.MAIN" />
20
                <category android:name="android.intent.category.LAUNCHER" />
21
            </intent-filter>
22
        </activity>
23
    </application>
24
</manifest>

Initializing the HUMAN Manager

1. Import the following classes into your Application class or the main activity:

   1
   import com.perimeterx.msdk.ManagerReadyCallback;
   2
   import com.perimeterx.msdk.NewHeadersCallback;
   3
   import com.perimeterx.msdk.PXManager;

2. In your onCreatemethod initialize the HUMAN Manager (using your HUMANApp ID):

   1
   @Override
   2
   public void onCreate() {
   3
       super.onCreate();
   4
       SoLoader.init(this, /* native exopackage */ false);
   5
   6
       PXManager.getInstance()
   7
       .setNewHeadersCallback(new NewHeadersCallback() {
   8
           @Override
   9
           public void onNewHeaders(HashMap<String, String> headers) {
   10
             System.out.println("New headers called back");
   11
           }
   12
       })
   13
       .setManagerReadyCallback(new ManagerReadyCallback() {
   14
           @Override
   15
           public void onManagerReady(HashMap<String, String> headers) {
   16
               Intent localIntent = new Intent("managerReady");
   17
               Log.i(LOG_TAG, "onManagerReady: " + headers);
   18
           }
   19
       })
   20
       .start(this, "<app_id>");
   21
   }

Creating a Bridge For The Native Methods

1. In your project, add a new class called PXBridge and set it to extend ReactContextBaseJavaModule:

   1
   public class PXBridge extends ReactContextBaseJavaModule {
   2
   3
   }

2. Add the class constructor:

   1
   public PXBridge(ReactApplicationContext reactContext) {
   2
       super(reactContext);
   3
   }

3. Add the following methods:

   1
   @ReactMethod
   2
   public void verifyResponse(ReadableMap body, final Promise promise) {
   3
   4
       String parsedBody;
   5
       try {
   6
           JSONObject convertedBody = convertMapToJson(body);
   7
           parsedBody = convertedBody.toString();
   8
   9
       } catch (JSONException e) {
   10
           parsedBody = body.toString();
   11
       }
   12
   13
   14
       PXResponse PXResponse = PXManager.checkError(parsedBody);
   15
       if (PXResponse.enforcement().name().equals("NOT_PX_BLOCK")){
   16
           promise.resolve("NotPXBlock");
   17
       } else {
   18
           PXManager.handleResponse(PXResponse, new ActionResultCallback() {
   19
   20
               @Override
   21
               public void onSuccess() {
   22
                   System.out.println("onSuccess called ....");
   23
                   promise.resolve("success");
   24
               }
   25
   26
               @Override
   27
               public void onFailure(IOException exception) {
   28
                   promise.resolve("failure");
   29
               }
   30
   31
               @Override
   32
               public void onBlockWindowClosed() {
   33
                   promise.reject("error", Block Window Closed");
   34
               }
   35
           });
   36
       }
   37
   38
   }
   39
   40
   @ReactMethod
   41
   public void getHttpHeaders(Promise promise) {
   42
       WritableMap map = Arguments.createMap();
   43
   44
       for (HashMap.Entry<String, String> entry : PXManager.httpHeaders().entrySet()) {
   45
           map.putString(entry.getKey(),entry.getValue());
   46
       }
   47
       promise.resolve(map);
   48
   }
   49
   50
   private static JSONObject convertMapToJson(ReadableMap readableMap) throws JSONException {
   51
       JSONObject object = new JSONObject();
   52
       ReadableMapKeySetIterator iterator = readableMap.keySetIterator();
   53
       while (iterator.hasNextKey()) {
   54
           String key = iterator.nextKey();
   55
           switch (readableMap.getType(key)) {
   56
               case Null:
   57
                   object.put(key, JSONObject.NULL);
   58
                   break;
   59
               case Boolean:
   60
                   object.put(key, readableMap.getBoolean(key));
   61
                   break;
   62
               case Number:
   63
                   object.put(key, readableMap.getDouble(key));
   64
                   break;
   65
               case String:
   66
                   object.put(key, readableMap.getString(key));
   67
                   break;
   68
               case Map:
   69
                   object.put(key, convertMapToJson(readableMap.getMap(key)));
   70
                   break;
   71
               case Array:
   72
                   object.put(key, convertArrayToJson(readableMap.getArray(key)));
   73
                   break;
   74
           }
   75
       }
   76
       return object;
   77
   }
   78
   79
   private static JSONArray convertArrayToJson(ReadableArray readableArray) throws JSONException {
   80
       JSONArray array = new JSONArray();
   81
       for (int i = 0; i < readableArray.size(); i++) {
   82
           switch (readableArray.getType(i)) {
   83
               case Null:
   84
                   break;
   85
               case Boolean:
   86
                   array.put(readableArray.getBoolean(i));
   87
                   break;
   88
               case Number:
   89
                   array.put(readableArray.getDouble(i));
   90
                   break;
   91
               case String:
   92
                   array.put(readableArray.getString(i));
   93
                   break;
   94
               case Map:
   95
                   array.put(convertMapToJson(readableArray.getMap(i)));
   96
                   break;
   97
               case Array:
   98
                   array.put(convertArrayToJson(readableArray.getArray(i)));
   99
                   break;
   100
           }
   101
       }
   102
       return array;
   103
   }
   104
   105
   @Override
   106
   public String getName() {
   107
       return "PXBridge";
   108
   }

The bridge exposes the minimal methods required for the SDK to operate:

• getHttpHeaders - returns a JSON file containing the HUMAN HTTP headers.
• verifyResponse - verifies the 403 response and based on its content - either returns the response unchanged or calls the SDK’s handleBlockResponse method.

4. Add a new class called PXBridgePackage and set it to extend ReactPackage:

   1
   public class PXBridgePackage implements ReactPackage {
   2
   3
   }

5. Add the following methods to the new class:

   1
   @Override
   2
   public List<NativeModule> createNativeModules(ReactApplicationContext reactContext) {
   3
       List<NativeModule> modules = new ArrayList<>();
   4
       modules.add(new PXBridge(reactContext));
   5
       return modules;
   6
   }
   7
   8
   @Override
   9
   public List<ViewManager> createViewManagers(ReactApplicationContext reactContext) {
   10
       return Collections.emptyList();
   11
   }

6. In your app’s MainApplication.java, add the PXBridgePackage class to the end of the array returned by the GetPackages()method:

   1
   protected List<ReactPackage> getPackages() {
   2
         return Arrays.<ReactPackage>asList(
   3
             new MainReactPackage(),
   4
             new PXBridgePackage()
   5
         );
   6
       }

Adding the HUMAN HTTP Headers to the HTTP Requests

Once the HUMAN Manager is initialized, you need to add the HUMAN HTTP Headers to every network request your app is making. These headers can be retrieved by calling the PXManager.httpHeaders() method of the SDK, which is exposed to the JavaScript side by the bridge created in the previous step.

Using Axios

To add the HUMAN HTTP headers to every request using Axios, use the following example:

1
import {NativeModules} from 'react-native';
2
3
axios.interceptors.request.use(async (config) => {
4
    const pxHeaderResponse = await NativeModules.PXBridge.getHttpHeaders();
5
    for (var prop in pxHeaderResponse) {
6
        config.headers[prop] = pxHeaderResponse[prop];
7
    }
8
    return config;
9
}, function (error) {
10
    throw error;
11
});

Using Fetch

To add the HUMAN HTTP headers to a fetch request, either add the headers directly to each request or create a wrapper like the following example:

1
async function callFetch() {
2
        const url = '                                      ';
3
        const pxHeaderResponse = await NativeModules.PXBridge.getHttpHeaders();
4
        let headers = {};
5
        for (var prop in pxHeaderResponse) {
6
            headers[prop] = pxHeaderResponse[prop];
7
        }
8
        let result;
9
        try {
10
            result = await fetch(url,{
11
                method: 'GET',
12
                headers: headers
13
            })
14
            let jsonResult = await result.json();
15
            return jsonResult;
16
        } catch (e) {
17
            throw e;
18
        }
19
    }

Managing Requests Denied by HUMAN

When a HTTP request is denied by HUMAN, a 403 response code is sent in the HTTP response along with a JSON body encoded as a UTF-8. The encoded JSON body is parsed and used by the HUMAN Android SDK. The parsed JSON is then used to render a WebView to either challenge (with CAPTCHA) the visitor or block the visitor from continuing in the application. If the user solves the presented challenge they will return to the application. If the user fails the CAPTCHA challenge they continue to be challenged until they pass the verification screen.

Implementing the Error Handler

Using Axios

The easiest way to implement the error handler is with Axios’s response interceptor:

1
axios.interceptors.response.use((response) => {
2
    return response;
3
}, async (error) => {
4
    if (error.response.status === 403) {
5
        let result = await NativeModules.PXBridge.verifyResponse(error.response.data);
6
        if (result == "NotPXBlock") {
7
            throw error;
8
        }
9
    } else {
10
        throw error;
11
    }
12
});

Using Fetch

You can also implement the error handler using a Fetch based wrapper:

1
async function callFetch() {
2
    const url = '                                      ';
3
    const pxHeaderResponse = await NativeModules.PXBridge.getHttpHeaders();
4
    let headers = {};
5
    for (var prop in pxHeaderResponse) {
6
        headers[prop] = pxHeaderResponse[prop];
7
    }
8
    let result;
9
    try {
10
        result = await fetch(url,{
11
            method: 'GET',
12
            headers: headers
13
        })
14
        let jsonResult = await result.json();
15
        return jsonResult;
16
    } catch (error) {
17
        if (error.response.status === 403) {
18
            let result = await NativeModules.PXBridge.verifyResponse(error.response.data);
19
            if (result == "NotPXBlock") {
20
                throw error;
21
            }
22
        } else {
23
            throw error;
24
        }
25
    }
26
}

Handling Back Button on Captcha webView

When the application request is blocked by the HUMAN Enforcer, the SDK takes control and a Captcha page is displayed. Attackers may attempt to use Android’s back button to return to the previous screen and continue malicious behavior. HUMAN allows you to enable or disable Android’s back button functionality. When the back button is enabled, touching the back button returns the attacker to the previous screen. Any additional network calls cause the SDK to block the attacker again. By disabling the back button, the attacker remains on the CAPTCHA page until he solves the Captcha challenge, or until he exits the application and relaunches it. When the application is relaunched, any additional network call is blocked with a Captcha page.

By default, the SDK enables using the back button.

1. To disable the back button, add the following code to the HUMANManager object during initialization of the SDK:

   1
   .setBackButtonDisabled(true)
   2
   .setBackButtonPressedCallback(new BackButtonPressedCallBack(){
   3
   4
       @Override
   5
       public void onBackButtonPressed(){
   6
           Log.i(LOG_TAG, "back button pressed");
   7
       }
   8
   })



2. Inside the onBackButtonPressed method you can add the code of your choice to return the blocked user to his previous flow.

Adding Custom Parameters

Custom parameters allow you to collect and send specific app or device information to be used later for aggregations and intelligence.
Using the PXManager*setCustomParameters()` method you can specify up to 10 custom parameters to be sent to HUMAN servers on every network request.

setCustomParameters() accepts a Map of type [String, String] with all the keys beginning with custom_param followed by a number (1-10).
The setCustomParameters() method is set once before calling the start method.

The following example adds 2 custom parameters:

1
@Override
2
    public void onCreate() {
3
        super.onCreate();
4
        SoLoader.init(this, /* native exopackage */ false);
5
6
        Map<String, String> customParams = new HashMap<>();
7
        customParams.put("custom_param1", "John Bradely");
8
        customParams.put("custom_param2", "New York");
9
10
        PXManager.getInstance()
11
            .setCustomParameters(customParams)
12
            .start(this, "<app_id>");
13
14
.. _add-the-perimeterx-http-headers-to-the-applications-http-requests:

WebView Integration

Added in version: v1.15.2

If your application includes a WebView, you need to allow HUMAN SDK to handle the session connection between the web view and the application.
To do that, after you create a web view instance (or get its reference from the view), call:

1
PXWebView.pxInit(webView, webViewClient);

• The first parameter is your web view instance.
• The second parameter is optional and can be NULL. If you want to receive events from the web view, you should pass your web view client instance.
  The HUMAN SDK depends on Javascript. You should not disable Javascript in your web view’s settings.

Support Account Defender (From version 1.16.5)

The Account Defender Manager instance is retrieved by calling PXAccountDefenderManager.getInstance(context) with a context object. To enable the feature, a user ID must be set. That can be done by calling the PXAccountDefenderManager.setUserID function and providing the user ID. When the user ID is changed, the function should be called again with the updated user ID. If the user logs out, the function should be called with nil. The function should be called after the PXManager.startWith function.
To register outgoing URL requests, call the PXAccountDefenderManager.registerOutgoingUrlRequest function with the URL. This function should be called only when Account Defender is enabled (user ID is set).

User Agent Convention

HUMAN uses the application’s user agent to identify and differentiate between application versions. For accurate detection it is important that the user agent your application reports is informative. Here is the recommended convention:

Doctor App

The “Doctor App” is a tool to help you verify the mobile SDK integration by simulating a typical user flow in your application. To enable this feature, add the enableDoctorCheck = true parameter in the start method.

Example:

1
[PXManager.sharedInstance startWith:@"[YOUR_APP_ID]" enableDoctorCheck:YES];

Flow:

1. Welcome screen: In this screen you select whether to start a new test or load the summary of the previous test, if one exists.
2. Instructions screen: In this screen you get detailed instructions on how the Doctor app works

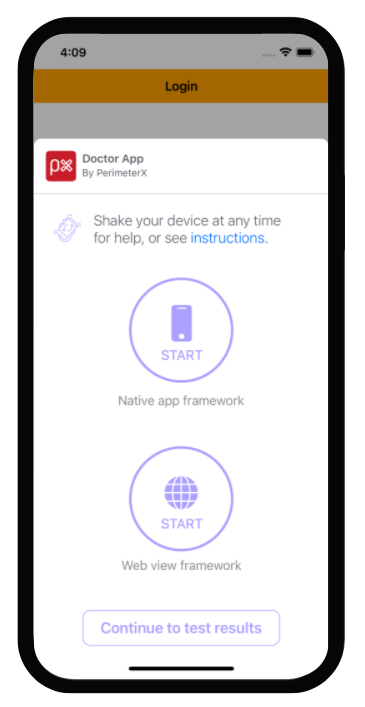

3. Test selection screen: In this screen you choose which type of test to execute. Options are:
   a. Native app framework - test your native URL requests.
   b. Web view framework - test your web view’s URL requests.
   After executing either test, you will return to this screen to be able to execute the other test or to continue and review the test results in the summary screen.

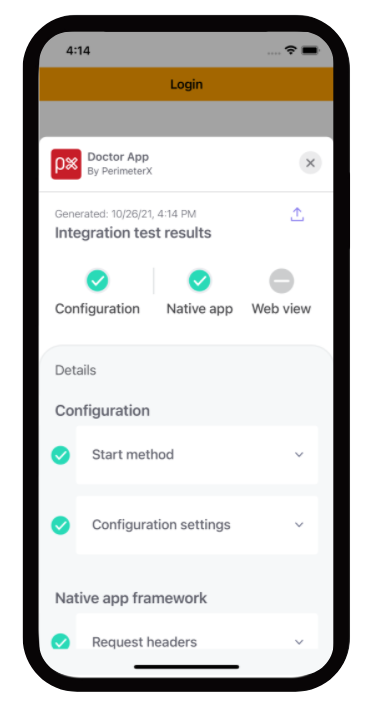

4. Summary screen: In this screen you are able to view the results of the executed tests. You can go into details regarding each test and get troubleshooting tips in case a test failed to help you analyze what is causing this issue.


Verifying Your Integration

Validating that HUMANManager is Loaded Properly

Checking the ManagerReady Callback

To verify that SDK is implemented correctly, print a line to the console when the ManagerReady callback is fired.

1
.setManagerReadyCallback(new ManagerReadyCallback() {
2
    @Override
3
    public void onManagerReady(HashMap<String, String> headers) {
4
        System.out.println("Manager ready called back");
5
    }
6
})

A log line similar to the example below should be displayed in your Android Monitor window:

1
09-28 21:13:09.776 3484-3585/com.perimeterx.example I/System.out: Manager ready called back

Checking With ADB

Connect to the device with ADB and run adb logcat | grep InternalManager.
This should produce the following output indicating the SDK has started and is in a ready state:

1
$ adb logcat | grep InternalManager
2
09-28 21:13:08.129  3484  3484 I InternalManager: SDK start()
3
09-28 21:13:08.227  3484  3484 I InternalManager: shouldRunCompleteSDKFlow - app version is different - new version: 1.0
4
09-28 21:13:08.227  3484  3484 I InternalManager: SDK shouldRunCompleteSDKFlow
5
09-28 21:13:08.227  3484  3484 I InternalManager: checkSDKEnabled...
6
09-28 21:13:08.576  3484  3511 I InternalManager: SDK is enabled on server
7
09-28 21:13:08.576  3484  3511 D InternalManager: Running app init activity
8
09-28 21:13:09.776  3484  3585 I InternalManager: SDK ready time: 1647

Validating that HUMAN HTTP Headers Are Part of Your Request

Connections to your API endpoint can be inspected using a local proxy such as CharlesProxy_.
When inspecting requests look for the HTTP header named X-HUMAN-AUTHORIZATION.

If this header is not present go back to the application code responsible for making the request and review to verify the headers were added to the request properly.

Validating Denied Requests

Denied requests have one of two possible actions, block or challenge, and both should be validated to ensure the request is properly handled.

Console Developer Testing Tools

Developers integrating with the HUMAN Mobile SDK can be given access to the HUMAN Portal in a developer role. They then have access to the Developer section, which contains the Mobile Enforcement Verification tool. This tool allows a developer to mark their requests to be denied for testing purposes.

The testing tool is necessary to validate denied requests.

1. Access the tool at https://console.humansecurity.com/botDefender/admin?page=integration.
2. Locate your test device’s Visitor ID <glossary:VID>, and click the <glossary:VID> Extractor button.
   This will launch the <glossary:VID> Extractor model
3. Insert your IP address and click Search.
   This locates all <glossary:VID>s for your APP ID.
4. Click Select to return to the tool with the App ID and <glossary:VID> fields populated.
5. When the App ID and <glossary:VID> are available, you can start validating denied requests.

Validating a Challenge Response

To validate a challenge response:

1. Click Captcha in the test tool and wait for the green toast notification to confirm you are ready to continue.
2. When the next HUMAN token refresh occurs in your mobile application you will receive the CAPTCHA WebView.
3. To force a token refresh simply exit and relaunch the application.
4. Solve the challenge presented and verify that you are able to return to the application and continue using it.

Validating a Blocking Response

To validate a blocking response:

1. Click Block in the test tool and wait for the green toast notification to confirm you are ready to continue.
2. When the next HUMAN token refresh occurs in your mobile application you will receive the block WebView.
3. To force a token refresh simply relaunch the application. Once you are blocked you cannot continue.
4. To release from blocking, exit the application, click the Clear button, and reload the application to verify that the clean token was received and the application is operating as expected.

Appendix

Configuring an Android Emulator to use Charles Proxy

To configure your Android Emulator:

1. Set the HTTP proxy settings in the Wi-Fi menu.
2. In the Wi-Fi menu long press the connected network, select Modify Network, and fill in the proxy settings.
   If you are running Charles Proxy on your local machine then use the local IP (not the loopback).
3. To intercept HTTPS requests follow the guidelines at:
   https://www.charlesproxy.com/documentation/using-charles/ssl-certificates/ In Android Nougat special permissions are required to use a certificate added to the trust store.

Deactivating the HUMAN Mobile Sensor Remotely

In certain cases, the HUMAN Mobile Sensor (SDK) may need to be deactivated remotely, and the app run without any sensor intervention.

This can be done based on any combination of the following parameters:

• AppID
• Operating System
• Operating System Version
• SDK Version
• App Version

To deactivate the HUMAN Mobile Sensor, contact your assigned focal point within HUMAN. Portal support to allow deactivation via the Portal will be added in the future.

Support for Full Screen on Devices with Display Cutouts

The default cutout mode is set to Never, meaning the challenge page will not render on the cutout area:

To change the behavior to SHORT_EDGES, and have the page render on the entire display area, set the setIsCutoutFullScreen() to true.

The setIsCutoutFullScreen() method is set once before calling the start method.

1
@Override
2
public void onCreate() {
3
    super.onCreate();
4
    SoLoader.init(this, /* native exopackage */ false);
5
6
    PXManager.getInstance()
7
        .setIsCutoutFullScreen(true)
8
        .start(this, "<app_id>");

The challenge page will now render over the entire display
