How to integrate the SDK in your application

v1.x

Android SDK

Adding the Android SDK to your project

1. Add the Android SDK Binary to Your Project.
   The official repository for hosting the HUMAN Android SDK

The repository can be integrated with Maven, Gradle, or Ivy.

In Maven, run:

1
<dependency>
2
3
<groupId>com.perimeterx.sdk</groupId>
4
5
<artifactId>msdk</artifactId>
6
7
<version><version_to_download></version>
8
9
<type>pom</type>
10
11
</dependency>

In Gradle, run:

1
implementation 'com.perimeterx.sdk:msdk:<version_to_download>'

In Ivy, run:

1
<dependency org='com.perimeterx.sdk' name='msdk' rev='<version_to_download>'>
2
3
<artifact name='msdk' ext='pom' ></artifact>
4
5
</dependency>

2. Once the binary is added to your project, resync the build files to ensure the package is downloaded.

3. The SDK is now installed, and there should not be any build errors when compiling your application.

To import and integrate the Android SDK in an Android application edit the project’s build.gradle file and add the following maven and mavenCentral configurations:

allprojects {
repositories {
mavenCentral() //allows PerimeterX's Android SDK to resolve its needed dependencies from maven central
maven {
url "https://perimeterx.jfrog.io/artifactory/px-Android-SDK/" //PerimeterX's Artifactory repository url
}
}
}

Adding the Required Permissions to AndroidManifest

1. In the AndroidManifest.xml add:

1
<uses-permission android:name="android.permission.INTERNET" />
2
3
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

XML example:

1
<?xml version="1.0" encoding="utf-8"?>
2
3
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
4
5
package="com.snackhappy.bambarace">
6
7
8
<uses-feature android:name="android.hardware.wifi" android:required="true" />
9
10
11
<uses-permission android:name="android.permission.INTERNET" />
12
13
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
14
15
16
<application
17
18
android:allowBackup="true"
19
20
android:icon="@mipmap/ic_launcher"
21
22
android:label="@string/app_name"
23
24
android:roundIcon="@mipmap/ic_launcher_round"
25
26
android:supportsRtl="true"
27
28
android:theme="@style/AppTheme">
29
30
<activity android:name=".MainActivity">
31
32
<intent-filter>
33
34
<action android:name="android.intent.action.MAIN" />
35
36
<category android:name="android.intent.category.LAUNCHER" />
37
38
</intent-filter>
39
40
</activity>
41
42
</application>
43
44
</manifest>

Loading the PX Manager

1. Import the following classes into your Application class or the main activity:

1
import com.perimeterx.msdk.PXManager;
2
3
import com.perimeterx.msdk.NewHeadersCallback;
4
5
import com.perimeterx.msdk.ManagerReadyCallback;
6
7
import com.perimeterx.msdk.PXResponse;
8
9
import com.perimeterx.msdk.BackButtonPressedCallBack;

2. In your onCreate method initialize the PX Manager (using your App ID):

1
private final static String PERIMETERX_APPID = "PX12345678";
2
3
@Override
4
5
protected void onCreate(Bundle savedInstanceState) {
6
7
8
PXManager.getInstance()
9
10
.setNewHeadersCallback(
11
12
new NewHeadersCallback() {
13
14
@Override
15
16
public void onNewHeaders(HashMap<String, String> headers) {
17
18
System.out.println("New headers called back");
19
20
}
21
22
}
23
24
)
25
26
.setManagerReadyCallback(new ManagerReadyCallback() {
27
28
@Override
29
30
public void onManagerReady(HashMap<String, String> headers) {
31
32
System.out.println("Manager ready called back");
33
34
}
35
36
})
37
38
.start(this, PERIMETERX_APPID);
39
40
}

1
private val PERIMETERX_APPID = "PX12345678"
2
3
4
override fun onCreate(savedInstanceState: Bundle?) {
5
6
super.onCreate(savedInstanceState)
7
8
9
PXManager.getInstance()
10
11
.setNewHeadersCallback { println("New headers called back") }
12
13
.setManagerReadyCallback { println("Manager ready called back") }
14
15
.start(this, PERIMETERX_APPID)
16
17
18
}

• When initializing the PXManager instance the setManagerReadyCallback is called when the first set of HTTP headers are available.

• Setting the setNewHeadersCallback is required to ensures that the PXManager will notify the application that a refresh to the HTTP headers occurred. This is based on the token validity time set in the HUMAN portal.

• Action in the onNewHeaders method is optional. (reference the code example above).

Adding the HTTP Headers to the HTTP Requests

1. Once the PX Manager is initialized, add HTTP Headers to your network manager headers.

You are now set to start your requests.

2. The HTTP headers are retrieved by calling the httpHeaders() method of PXManager.

This returns a hashmap of type Map< String, String>. This map can be used as is or can be iterated over.

Using Volley

To add the HTTP headers to a request in Volley you can override the getHeaders method:

1
@Override
2
3
public Map<String, String> getHeaders() throws AuthFailureError {
4
5
return PXManager.httpHeaders();
6
7
}

1
@Throws(AuthFailureError::class)
2
3
override fun getHeaders(): Map<String?, String?>? {
4
5
return PXManager.httpHeaders()
6
7
}

Using OKHttp

To add the HTTP headers to a request in OKHttp

1
Request.Builder reqBuilder = new Request.Builder().url("https://www.perimeterx.com/");
2
3
for (HashMap.Entry<String, String> entry : PXManager.httpHeaders().entrySet()) {
4
5
String key = entry.getKey();
6
7
String value = entry.getValue();
8
9
reqBuilder.addHeader(key, value);
10
11
}

1
val reqBuilder: Request.Builder = OkHttpClient.Builder().url("https://www.perimeterx.com/")
2
3
for (entry in PXManager.httpHeaders().entries) {
4
5
val key: String = entry.key
6
7
val value: String = entry.value
8
9
reqBuilder.addHeader(key, value)
10
11
}

Reference Interceptors for advanced integration.

Managing Requests Denied

When a HTTP request is denied because of internal error, a 403 response code is sent in the HTTP response along with a JSON body encoded as a UTF-8 that is parsed and used by the Android SDK. The parsed JSON is then used to render a WebView to either challenge (with CAPTCHA) the visitor, or block the visitor from continuing in the application. When the user solves the CAPTCHA challenge they are returned to the application. If the user fails the CAPTCHA challenge they continue to be challenged until they pass the verification screen.

Implementing the Error Handler

The PXManager object checks the body of the returned error message by calling the checkError() method, and passing in the body object as a UTF-8 encoded string. This returns an object type of PXResponse.

To check whether a 403 status code is coming from PX, run:

1
PXResponse PXResponse = PXManager.checkError(body);
2
3
if (PXResponse.enforcement().name().equals("NOT_PX_BLOCK")){
4
5
//the 403 error was not sent by PX

1
val response = PXManager.checkError(body)
2
3
if (response.enforcement().name.equals("NOT_PX_BLOCK")) {
4
5
//the 403 error was not sent by PX
6
7
}

1
final String body = new String(error.networkResponse.data, UTF_8);
2
3
PXResponse PXResponse = PXManager.checkError(body);

1
val body = error.networkResponse.data.toString()
2
3
val response = PXManager.checkError(body)

The PXResponse object is processed by calling the handleResponse() method of the PXManager object, and passing two arguments:

PXResponse and CaptchaResultCallback.

The handleResponse() method renders the WebView containing the CAPTCHA challenge.

The CaptchaResultCallback must implement the onCallback() method. onCallback() is called whenever the user solves the challenge or the challenge is canceled.

1
PXManager.handleResponse(PXResponse, new CaptchaResultCallback() {
2
3
@Override
4
5
public void onCallback(Result result, CancelReason reason) {
6
7
switch (result) {
8
9
case SUCCESS:
10
11
Log.i(LOG_TAG, "SUCCESS");
12
13
break;
14
15
case CANCELED:
16
17
Log.i(LOG_TAG, "captcha canceled due to: " + reason);
18
19
break;
20
21
}
22
23
}
24
25
});

1
PXManager.handleResponse(response) { result, reason ->
2
3
when (result) {
4
5
CaptchaResultCallback.Result.SUCCESS -> Log.i(LOG_TAG, "SUCCESS")
6
7
CaptchaResultCallback.Result.CANCELED -> Log.i(
8
9
LOG_TAG, "captcha canceled due to: $reason"
10
11
)
12
13
}
14
15
}

handleResponseSync is the same as handleResponse but blocks the current thread. It can be used for implementing an Interceptor. For example:

1
import com.perimeterx.msdk.*
2
3
import okhttp3.Interceptor
4
5
import okhttp3.Request
6
7
import okhttp3.Response
8
9
import kotlin.jvm.Throws
10
11
import java.io.IOException
12
13
14
internal class PXInterceptor: Interceptor {
15
16
17
@Throws(IOException::class)
18
19
override fun intercept(chain: Interceptor.Chain): Response {
20
21
val request = chain.request().newBuilder().build()
22
23
return proceedRequestAndResolvePXResponseIfNeeded(chain, request)
24
25
}
26
27
28
fun proceedRequestAndResolvePXResponseIfNeeded(chain: Interceptor.Chain, request: Request): Response {
29
30
do {
31
32
// add PX headers (remove old values if exist)
33
34
val theRequest = addPXHeaders(removePXHeaders(request))
35
36
val response = chain.proceed(theRequest)
37
38
val rawResponseBody = response.peekBody(Long.MAX_VALUE).string()
39
40
val pxResponse = PXManager.checkError(rawResponseBody)
41
42
43
// checkk if the response is NOT_PX_BLOCK
44
45
if (pxResponse.enforcement() == PXResponse.EnforcementType.NOT_PX_BLOCK) {
46
47
// return the response
48
49
return response
50
51
}
52
53
return try {
54
55
// handle PX's response (will show captcha screen to the user)
56
57
val result = PXManager.handleResponseSync(pxResponse)
58
59
60
// handle the captcha result
61
62
when (result.captchaResult) {
63
64
CaptchaResult.CAPTCHA_SUCCESS -> {
65
66
// the user solved the captcha -> procceed the request again
67
68
continue;
69
70
}
71
72
CaptchaResult.NO_CAPTCHA, CaptchaResult.CAPTCHA_CANCELED, null -> {
73
74
// the user didn't solve the captcha -> crate an error responsereturn
75
76
createError(response)
77
78
}
79
80
}
81
82
} catch (e: ExecutionException) {
83
84
// return error
85
86
createError(response)
87
88
} catch (e: InterruptedException) {
89
90
// return error
91
92
createError(response)
93
94
}
95
96
} while (Thread.currentThread().isAlive)
97
98
throw IOException("currnet thread is dead")
99
100
}
101
102
103
fun addPXHeaders(request: Request): Request {
104
105
val builder = request.newBuilder()
106
107
PXManager.httpHeaders().forEach {
108
109
builder.addHeader(it.key, it.value)
110
111
}
112
113
return builder.build()
114
115
}
116
117
118
fun removePXHeaders(request: Request): Request {
119
120
val builder = request.newBuilder()
121
122
PXManager.httpHeaders().forEach {
123
124
builder.removeHeader(it.key)
125
126
}
127
128
return builder.build()
129
130
}
131
132
133
fun createError(response: Response): Response {
134
135
return response.newBuilder().code(-1).build()
136
137
}
138
139
}

Depending on how your application is built, an attacker can be blocked on any network call your application makes. The attacker can be blocked while the application is loading, and the only thing the user sees is the splash screen. The attacker can be in a background thread when the application makes API calls to retrieve a session token or to request data from the server to be presented on the screen.

You can choose what screen to display after the blocked user successfully solves a CAPTCHA challenge. The user can be redirected to their previous activity and retry the network calls that were blocked. The user can be returned to their previous activity and have to repeat the action that was blocked. The user can be redirected to a different screen.

Using Volley

With Volley a Response.ErrorListener is implemented and the VolleyError is passed to the the onErrorResponse() method.

1
new Response.ErrorListener() {
2
3
@Override
4
5
// Handles errors that occur due to Volley
6
7
8
public void onErrorResponse(final VolleyError error) {
9
10
final NetworkResponse networkResponse = error.networkResponse;
11
12
if (networkResponse != null && networkResponse.statusCode == 403) // Check the HTTP  response status code
13
14
{
15
16
// Retrieve body for captcha processing as a UTF 8 string.
17
18
19
final String body = new String(error.networkResponse.data, UTF_8);
20
21
22
PXResponse PXResponse = PXManager.checkError(body);
23
24
if (PXResponse.enforcement().name().equals("NOT_PX_BLOCK")){
25
26
// Handle non PerimeterX 403 response status code
27
28
}
29
30
PXManager.handleResponse(PXResponse, new CaptchaResultCallback() {
31
32
@Override
33
34
public void onCallback(Result result, CancelReason reason) {
35
36
switch (result) {
37
38
case SUCCESS:
39
40
Log.i(LOG_TAG, "SUCCESS");
41
42
break;
43
44
case CANCELED:
45
46
Log.i(LOG_TAG, "captcha canceled due to: " + reason);
47
48
break;
49
50
}
51
52
}
53
54
});
55
56
}
57
58
59
Log.d("Volley", "Error");
60
61
results.setText(R.string.error_occurred);
62
63
}
64
65
}

1
Response.ErrorListener() {
2
3
// Handles errors that occur due to Volley
4
5
fun onErrorResponse(error: VolleyError?) {
6
7
val networkResponse = error!!.networkResponse
8
9
if (networkResponse != null && networkResponse.statusCode == 403) // Check the HTTP  response status code
10
11
{
12
13
// Retrieve body for captcha processing as a UTF 8 string.
14
15
val body = String(error!!.networkResponse.data, UTF_8)
16
17
val response = PXManager.checkError(body)
18
19
if (response.enforcement().name == "NOT_PX_BLOCK") {
20
21
// Handle non PerimeterX 403 response status code
22
23
}
24
25
PXManager.handleResponse(response) { result, reason ->
26
27
when (result) {
28
29
CaptchaResultCallback.Result.SUCCESS -> Log.i(LOG_TAG, "SUCCESS")
30
31
CaptchaResultCallback.Result.CANCELED -> Log.i(
32
33
LOG_TAG,
34
35
"captcha canceled due to: $reason"
36
37
)
38
39
}
40
41
}
42
43
}
44
45
46
Log.d("Volley", "Error")
47
48
results.setText(R.string.error_occurred)
49
50
}
51
52
}

Handling Back Button on CAPTCHA webView

When the application request is blocked by the Enforcer, the SDK takes control and a CAPTCHA page is displayed. Attackers may attempt to use Android’s back button to return to the previous screen and continue malicious behavior. There is an option for you to enable or disable Android’s back button functionality. By default, the SDK enables using the back button. When the back button is enabled, touching the back button returns the attacker to the previous screen. Any additional network calls cause the SDK to block the attacker again. By disabling the back button, the attacker remains on the CAPTCHA page until he solves the CAPTCHA challenge, or until he exits the application and relaunches it. When the application is relaunched, any additional network call is blocked with a CAPTCHA page.

1. To disable the back button, add the following code to the PXManager object during initialization of the SDK:

1
.setBackButtonDisabled(true)
2
3
.setBackButtonPressedCallback(new BackButtonPressedCallBack(){
4
5
6
@Override
7
8
public void onBackButtonPressed(){
9
10
Log.i(LOG_TAG, "back button pressed");
11
12
}
13
14
})

1
PXManager.getInstance().setBackButtonDisabled(true)
2
3
PXManager.getInstance().setBackButtonPressedCallback {
4
5
Log.i(LOG_TAG, "back button pressed");
6
7
}

2. Inside the onBackButtonPressed method you can add the code of your choice to return the blocked user to his previous flow.

WebView Integration

Added in version: v1.15.1

If your application includes a WebView, you need to allow SDK to handle the session connection between the web view and the application.

To do that, after you create a web view instance (or get its reference from the view), call:

1
PXWebView.pxInit(webView, webViewClient);

1
PXWebView.pxInit(webView, webViewClient)

• The first parameter is your web view instance.

• The second parameter is optional and can be NULL. If you want to receive events from the web view, you should pass your web view client instance.

The SDK depends on Javascript. You should not disable Javascript in your web view’s settings.

Adding Custom Parameters

Custom parameters allow you to collect and send specific app or device information to be used later for aggregations and intelligence.

Using the PXManager setCustomParameters() method you can specify up to 10 custom parameters to be sent to servers on every network request.

setCustomParameters() accepts a Map of type [String, String] with all the keys beginning with custom_param followed by a number (1-10).

The setCustomParameters() method is set once before calling the start method.

The following example adds 2 custom parameters:

1
@Override
2
3
protected void onCreate(Bundle savedInstanceState) {
4
5
Map<String, String> customParams = new HashMap<>();
6
7
customParams.put("custom_param1", "John Bradely");
8
9
customParams.put("custom_param2", "New York");
10
11
12
PXManager.getInstance()
13
14
.setCustomParameters(customParams)
15
16
.start(this, PERIMETERX_APPID);

1
override fun onCreate(savedInstanceState: Bundle?) {
2
3
super.onCreate(savedInstanceState)
4
5
6
val customParams: MutableMap<String, String> = HashMap()
7
8
customParams["custom_param1"] = "John Bradely"
9
10
customParams["custom_param2"] = "New York"
11
12
13
PXManager.getInstance().setCustomParameters(customParams)
14
15
PXManager.getInstance().start(this, PERIMETERX_APPID)
16
17
}

Support Account Defender (From version 1.16.5)

The Account Defender Manager instance is retrieved by calling PXAccountDefenderManager.getInstance(context) with a context object. To enable the feature, a user ID must be set. That can be done by calling the PXAccountDefenderManager.setUserID function and providing the user ID. When the user ID is changed, the function should be called again with the updated user ID. If the user logs out, the function should be called with nil. The function should be called after the PXManager.startWith function.

To register outgoing URL requests, call the PXAccountDefenderManager.registerOutgoingUrlRequest function with the URL. This function should be called only when Account Defender is enabled (user ID is set).

User Agent Convention

The application’s user agent is used to identify and differentiate between application versions. For accurate detection it is important that the user agent your application reports is informative. Here is the recommended convention:

Doctor App

The “Doctor App” is a tool to help you verify the mobile SDK integration by simulating a typical user flow in your application. To enable this feature, add the enableDoctorCheck = true parameter in the start method.

Example:

1
PXManager.getInstance().start(this, "[YOUR_APP_ID]", true);

Flow:

1. Welcome screen: In this screen you select whether to start a new test or load the summary of the previous test, if one exists.

2. Instructions screen: In this screen you get detailed instructions on how the Doctor app works

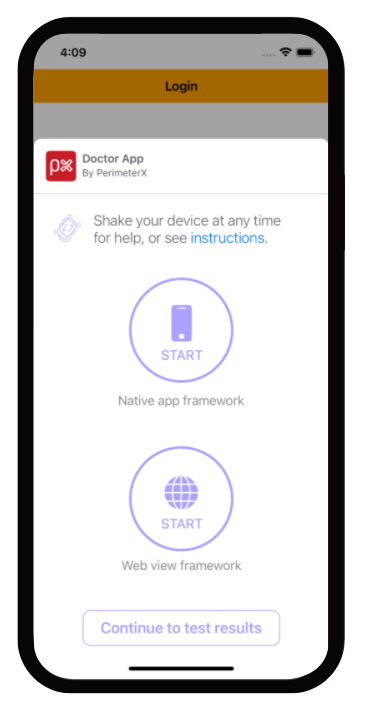

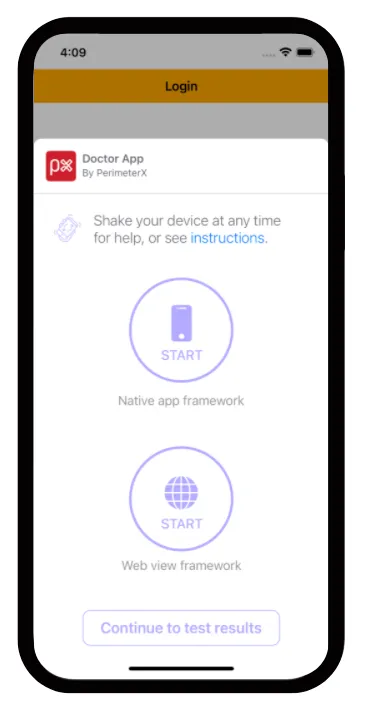

3. Test selection screen: In this screen you choose which type of test to execute. Options are:

a. Native app framework - test your native URL requests.

b. Web view framework - test your web view’s URL requests.

After executing either test, you will return to this screen to be able to execute the other test or to continue and review the test results in the summary screen.

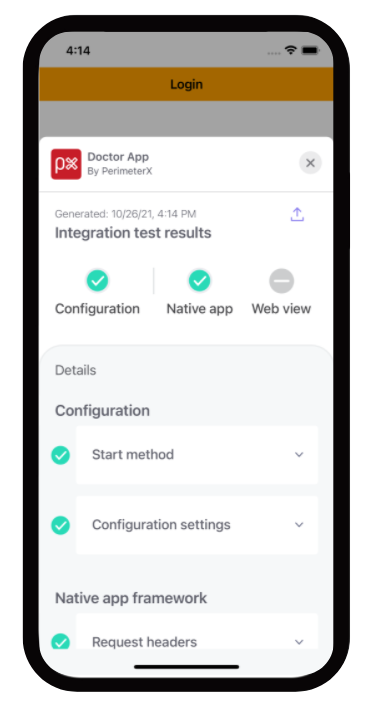

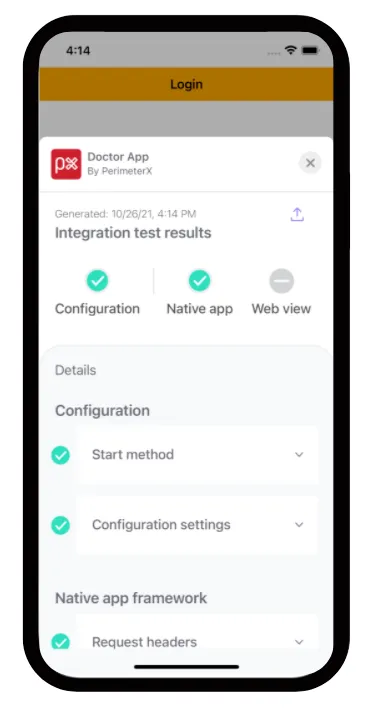

4. Summary screen: In this screen you are able to view the results of the executed tests. You can go into details regarding each test and get troubleshooting tips in case a test failed to help you analyze what is causing this issue.

Validating that PXManager is Loaded Properly

Checking the ManagerReady Callback

To verify that SDK is implemented correctly, print a line to the console when the ManagerReady callback is fired.

1
.setManagerReadyCallback(new ManagerReadyCallback() {
2
3
@Override
4
5
public void onManagerReady(HashMap<String, String> headers) {
6
7
System.out.println("Manager ready called back");
8
9
}
10
11
})

1
PXManager.getInstance().setManagerReadyCallback() {
2
3
println("Manager ready called back");
4
5
}

A log line similar to the example below should be displayed in your Android Monitor window:

1
09-28 21:13:09.776 3484-3585/com.perimeterx.example I/System.out: Manager ready called back

Checking With ADB

Connect to the device with ADB and run adb logcat | grep InternalManager.

This should produce the following output indicating the SDK has started and is in a ready state:

1
$ adb logcat | grep InternalManager
2
3
09-28 21:13:08.129  3484  3484 I InternalManager: SDK start()
4
5
09-28 21:13:08.227  3484  3484 I InternalManager: shouldRunCompleteSDKFlow - app version is different - new version: 1.0
6
7
09-28 21:13:08.227  3484  3484 I InternalManager: SDK shouldRunCompleteSDKFlow
8
9
09-28 21:13:08.227  3484  3484 I InternalManager: checkSDKEnabled...
10
11
09-28 21:13:08.576  3484  3511 I InternalManager: SDK is enabled on server
12
13
09-28 21:13:08.576  3484  3511 D InternalManager: Running app init activity
14
15
09-28 21:13:09.776  3484  3585 I InternalManager: SDK ready time: 1647

Validating that HTTP Headers Are Part of Your Request

Connections to API endpoint are inspected using a local proxy such as CharlesProxy_. When inspecting requests look for the HTTP header named X-PX-AUTHORIZATION.

If this header is not present go back to the application code responsible for making the request and review to verify the headers were added to the request properly.

Validating Denied Requests

Denied requests have one of two possible actions, block or challenge, and both should be validated to ensure the request is properly handled.

Console Developer Testing Tools

Developers integrating with the Mobile SDK can be given access to the HUMAN Portal in a developer role. They then have access to the Developer section, which contains the Mobile Enforcement Verification tool. This tool allows a developer the ability to mark their requests to be denied for testing purposes.

The testing tool is necessary to validate denied requests.

1. Access the tool at https://console.humansecurity.com/botDefender/developer.

2. Locate your test device’s Visitor ID <glossary:VID>, and click the <glossary:VID> Extractor button.

This will launch the <glossary:VID> Extractor model:

3. Insert your IP address and click Search.

This locates all <glossary:VID>s for your APP ID.

4. Click Select to return to the tool with the App ID and <glossary:VID> fields populated

5. When the App ID and <glossary:VID> are available, you can start validating denied requests.

Validating a Challenge Response

To validate a challenge response:

1. Click CAPTCHA in the test tool and wait for the green toast notification to confirm you are ready to continue.

2. When the next PX token refresh occurs in your mobile application you will receive the CAPTCHA WebView.

3. To force a token refresh simply exit and relaunch the application.

4. Solve the challenge presented and verify that you are able to return to the application and continue using it.

Validating a Blocking Response

To validate a blocking response:

1. Click Block in the test tool and wait for the green toast notification to confirm you are ready to continue.

2. When the next PX token refresh occurs in your mobile application you will receive the block WebView.

3. To force a token refresh simply relaunch the application. Once you are blocked you cannot continue.

4. To release from blocking, exit the application, click the Clear button, and reload the application to verify that the clean token was received and the application is operating as expected.

Appendix

Configuring an Android Emulator to use Charles Proxy

To configure your Android Emulator:

1. Set the HTTP proxy settings in the Wi-Fi menu.

2. In the Wi-Fi menu long press the connected network, select Modify Network, and fill in the proxy settings.

If you are running Charles Proxy on your local machine then use the local IP (not the loopback).

3. To intercept HTTPS requests follow the guidelines at:

https://www.charlesproxy.com/documentation/using-charles/ssl-certificates.

In Android Nougat special permissions are required to use a certificate added to the trust store.

Deactivating the PX Mobile Sensor Remotely

In certain cases, the PX Mobile Sensor (SDK) may need to be deactivated remotely, and the app run without any sensor intervention.

This can be done based on any combination of the following parameters:

• AppID

• Operating System

• Operating System Version

• SDK Version

• App Version

To deactivate the Mobile Sensor, contact assigned to you support person. Support to allow deactivation via the Portal will be added in the future.

Support for Full Screen on Devices with a Display Cutout

The default cutout mode is set to Never, meaning the challenge page will not render on the cutout area:

To change the behaviour to SHORT_EDGES, and have the page render on the entire display area, set the setIsCutoutFullScreen() to true.

The setIsCutoutFullScreen() method is set once before calling the start method.

1
@Override
2
3
protected void onCreate(Bundle savedInstanceState) {
4
5
6
PXManager.getInstance()
7
8
.setIsCutoutFullScreen(true)
9
10
.start(this, PERIMETERX_APPID);

1
override fun onCreate(savedInstanceState: Bundle?) {
2
3
super.onCreate(savedInstanceState)
4
5
6
PXManager.getInstance().setIsCutoutFullScreen(true)
7
8
PXManager.getInstance().start(this, PERIMETERX_APPID);
9
10
}

The challenge page will now render over the entire display:

Android SDK React Native

Integration

Adding the Android SDK to your Project:

1. Add the Android SDK Binary to Your Project with:

(the official repository for hosting the HUMAN Android SDK).

The repository can be integrated with Maven, Gradle, or Ivy.

In Maven, run:

1
<dependency>
2
3
<groupId>com.perimeterx.sdk</groupId>
4
5
<artifactId>msdk</artifactId>
6
7
<version><version_to_download></version>
8
9
<type>pom</type>
10
11
</dependency>
12
13
14
**In Gradle, run:**

1
implementation 'com.perimeterx.sdk:msdk:<version_to_download>'

In Ivy, run:

1
<dependency org='com.perimeterx.sdk' name='msdk' rev='<version_to_download>'>
2
3
<artifact name='msdk' ext='pom' ></artifact>
4
5
</dependency>

2. Once the binary is added to your project, resync the build files to ensure the package is downloaded.

To import and integrate the Android SDK in an Android application edit the project’s build.gradle file and add the following maven and mavenCentral configurations:

allprojects {
repositories {
mavenCentral() //allows PerimeterX's Android SDK to resolve its needed dependencies from maven central
maven {
url "https://perimeterx.jfrog.io/artifactory/px-Android-SDK/" //PerimeterX's Artifactory repository url
}
}
}

The SDK is now installed, and there should not be any build errors when compiling your application.

Adding the Required Permissions to AndroidManifest

In your AndroidManifest.xml add:

1
<uses-permission android:name="android.permission.INTERNET" />
2
3
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

XML example:

1
<?xml version="1.0" encoding="utf-8"?>
2
3
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
4
5
package="com.snackhappy.bambarace">
6
7
8
<uses-feature android:name="android.hardware.wifi" android:required="true" />
9
10
11
<uses-permission android:name="android.permission.INTERNET" />
12
13
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
14
15
16
<application
17
18
android:allowBackup="true"
19
20
android:icon="@mipmap/ic_launcher"
21
22
android:label="@string/app_name"
23
24
android:roundIcon="@mipmap/ic_launcher_round"
25
26
android:supportsRtl="true"
27
28
android:theme="@style/AppTheme">
29
30
<activity android:name=".MainActivity">
31
32
<intent-filter>
33
34
<action android:name="android.intent.action.MAIN" />
35
36
<category android:name="android.intent.category.LAUNCHER" />
37
38
</intent-filter>
39
40
</activity>
41
42
</application>
43
44
</manifest>

Initializing the PX Manager

1. Import the following classes into your Application class or the main activity:

1
import com.perimeterx.msdk.ManagerReadyCallback;
2
3
import com.perimeterx.msdk.NewHeadersCallback;
4
5
import com.perimeterx.msdk.PXManager;

2. In your onCreate method initialize the PX Manager (using your App ID):

1
@Override
2
3
public void onCreate() {
4
5
super.onCreate();
6
7
SoLoader.init(this, /* native exopackage */ false);
8
9
10
PXManager.getInstance()
11
12
.setNewHeadersCallback(new NewHeadersCallback() {
13
14
@Override
15
16
public void onNewHeaders(HashMap<String, String> headers) {
17
18
System.out.println("New headers called back");
19
20
}
21
22
})
23
24
.setManagerReadyCallback(new ManagerReadyCallback() {
25
26
@Override
27
28
public void onManagerReady(HashMap<String, String> headers) {
29
30
Intent localIntent = new Intent("managerReady");
31
32
Log.i(LOG_TAG, "onManagerReady: " + headers);
33
34
}
35
36
})
37
38
.start(this, "<app_id>");
39
40
}

Creating a Bridge For The Native Methods

1. In your project, add a new class called PXBridge and set it to extend ReactContextBaseJavaModule:

1
public class PXBridge extends ReactContextBaseJavaModule {
2
3
4
}

2. Add the class constructor:

1
public PXBridge(ReactApplicationContext reactContext) {
2
3
super(reactContext);
4
5
}

3. Add the following methods:

1
@ReactMethod
2
3
public void verifyResponse(ReadableMap body, final Promise promise) {
4
5
6
String parsedBody;
7
8
try {
9
10
JSONObject convertedBody = convertMapToJson(body);
11
12
parsedBody = convertedBody.toString();
13
14
15
} catch (JSONException e) {
16
17
parsedBody = body.toString();
18
19
}
20
21
22
23
PXResponse PXResponse = PXManager.checkError(parsedBody);
24
25
if (PXResponse.enforcement().name().equals("NOT_PX_BLOCK")){
26
27
promise.resolve("NotPXBlock");
28
29
} else {
30
31
PXManager.handleResponse(PXResponse, new ActionResultCallback() {
32
33
34
@Override
35
36
public void onSuccess() {
37
38
System.out.println("onSuccess called ....");
39
40
promise.resolve("success");
41
42
}
43
44
45
@Override
46
47
public void onFailure(IOException exception) {
48
49
promise.resolve("failure");
50
51
}
52
53
54
@Override
55
56
public void onBlockWindowClosed() {
57
58
promise.reject("error", Block Window Closed");
59
60
}
61
62
});
63
64
}
65
66
67
}
68
69
70
@ReactMethod
71
72
public void getHttpHeaders(Promise promise) {
73
74
WritableMap map = Arguments.createMap();
75
76
77
for (HashMap.Entry<String, String> entry : PXManager.httpHeaders().entrySet()) {
78
79
map.putString(entry.getKey(),entry.getValue());
80
81
}
82
83
promise.resolve(map);
84
85
}
86
87
88
private static JSONObject convertMapToJson(ReadableMap readableMap) throws JSONException {
89
90
JSONObject object = new JSONObject();
91
92
ReadableMapKeySetIterator iterator = readableMap.keySetIterator();
93
94
while (iterator.hasNextKey()) {
95
96
String key = iterator.nextKey();
97
98
switch (readableMap.getType(key)) {
99
100
case Null:
101
102
object.put(key, JSONObject.NULL);
103
104
break;
105
106
case Boolean:
107
108
object.put(key, readableMap.getBoolean(key));
109
110
break;
111
112
case Number:
113
114
object.put(key, readableMap.getDouble(key));
115
116
break;
117
118
case String:
119
120
object.put(key, readableMap.getString(key));
121
122
break;
123
124
case Map:
125
126
object.put(key, convertMapToJson(readableMap.getMap(key)));
127
128
break;
129
130
case Array:
131
132
object.put(key, convertArrayToJson(readableMap.getArray(key)));
133
134
break;
135
136
}
137
138
}
139
140
return object;
141
142
}
143
144
145
private static JSONArray convertArrayToJson(ReadableArray readableArray) throws JSONException {
146
147
JSONArray array = new JSONArray();
148
149
for (int i = 0; i < readableArray.size(); i++) {
150
151
switch (readableArray.getType(i)) {
152
153
case Null:
154
155
break;
156
157
case Boolean:
158
159
array.put(readableArray.getBoolean(i));
160
161
break;
162
163
case Number:
164
165
array.put(readableArray.getDouble(i));
166
167
break;
168
169
case String:
170
171
array.put(readableArray.getString(i));
172
173
break;
174
175
case Map:
176
177
array.put(convertMapToJson(readableArray.getMap(i)));
178
179
break;
180
181
case Array:
182
183
array.put(convertArrayToJson(readableArray.getArray(i)));
184
185
break;
186
187
}
188
189
}
190
191
return array;
192
193
}
194
195
196
@Override
197
198
public String getName() {
199
200
return "PXBridge";
201
202
}

The bridge exposes the minimal methods required for the SDK to operate:

• getHttpHeaders - returns a JSON file containing the HTTP headers.

• verifyResponse - verifies the 403 response and based on its content - either returns the response unchanged or calls the SDK’s handleBlockResponse method.

4. Add a new class called PXBridgePackage and set it to extend ReactPackage:

1
public class PXBridgePackage implements ReactPackage {
2
3
4
}

5. Add the following methods to the new class:

1
@Override
2
3
public List<NativeModule> createNativeModules(ReactApplicationContext reactContext) {
4
5
List<NativeModule> modules = new ArrayList<>();
6
7
modules.add(new PXBridge(reactContext));
8
9
return modules;
10
11
}
12
13
14
@Override
15
16
public List<ViewManager> createViewManagers(ReactApplicationContext reactContext) {
17
18
return Collections.emptyList();
19
20
}

6. In your app’s MainApplication.java, add the PXBridgePackage class to the end of the array returned by the GetPackages() method:

1
protected List<ReactPackage> getPackages() {
2
3
return Arrays.<ReactPackage>asList(
4
5
new MainReactPackage(),
6
7
new PXBridgePackage()
8
9
);
10
11
}

Adding the HTTP Headers to the HTTP Requests

Once the PX Manager is initialized, you need to add the HTTP Headers to every network request your app is making. These headers can be retrieved by calling the PXManager.httpHeaders() method of the SDK, which is exposed to the JavaScript side by the bridge created in the previous step.

Using Axios

To add the  HTTP headers to every request using Axios, use the following example:

1
import {NativeModules} from 'react-native';
2
3
4
axios.interceptors.request.use(async (config) => {
5
6
const pxHeaderResponse = await NativeModules.PXBridge.getHttpHeaders();
7
8
for (var prop in pxHeaderResponse) {
9
10
config.headers[prop] = pxHeaderResponse[prop];
11
12
}
13
14
return config;
15
16
}, function (error) {
17
18
throw error;
19
20
});

Using Fetch

To add the HTTP headers to a fetch request, either add the headers directly to each request or create a wrapper like the following example:

1
async function callFetch() {
2
3
const url = '                                      ';
4
5
const pxHeaderResponse = await NativeModules.PXBridge.getHttpHeaders();
6
7
let headers = {};
8
9
for (var prop in pxHeaderResponse) {
10
11
headers[prop] = pxHeaderResponse[prop];
12
13
}
14
15
let result;
16
17
try {
18
19
result = await fetch(url,{
20
21
method: 'GET',
22
23
headers: headers
24
25
})
26
27
let jsonResult = await result.json();
28
29
return jsonResult;
30
31
} catch (e) {
32
33
throw e;
34
35
}
36
37
}

Managing Requests Denied

When a HTTP request is denied because of internal error, a 403 response code is sent in the HTTP response along with a JSON body encoded as a UTF-8. The encoded JSON body is parsed and used by the Android SDK. The parsed JSON is then used to render a WebView to either challenge (with CAPTCHA) the visitor or block the visitor from continuing in the application. If the user solves the presented challenge they will return to the application. If the user fails the CAPTCHA challenge they continue to be challenged until they pass the verification screen.

Implementing the Error Handler

Using Axios

The easiest way to implement the error handler is with Axios’s response interceptor:

1
axios.interceptors.response.use((response) => {
2
3
return response;
4
5
}, async (error) => {
6
7
if (error.response.status === 403) {
8
9
let result = await NativeModules.PXBridge.verifyResponse(error.response.data);
10
11
if (result == "NotPXBlock") {
12
13
throw error;
14
15
}
16
17
} else {
18
19
throw error;
20
21
}
22
23
});

Using Fetch

You can also implement the error handler using a Fetch based wrapper:

1
async function callFetch() {
2
3
const url = '                                      ';
4
5
const pxHeaderResponse = await NativeModules.PXBridge.getHttpHeaders();
6
7
let headers = {};
8
9
for (var prop in pxHeaderResponse) {
10
11
headers[prop] = pxHeaderResponse[prop];
12
13
}
14
15
let result;
16
17
try {
18
19
result = await fetch(url,{
20
21
method: 'GET',
22
23
headers: headers
24
25
})
26
27
let jsonResult = await result.json();
28
29
return jsonResult;
30
31
} catch (error) {
32
33
if (error.response.status === 403) {
34
35
let result = await NativeModules.PXBridge.verifyResponse(error.response.data);
36
37
if (result == "NotPXBlock") {
38
39
throw error;
40
41
}
42
43
} else {
44
45
throw error;
46
47
}
48
49
}
50
51
}

Handling Back Button on Captcha webView

When the application request is blocked by the Enforcer, the SDK takes control and a Captcha page is displayed. Attackers may attempt to use Android’s back button to return to the previous screen and continue malicious behavior. There is an option for you to enable or disable Android’s back button functionality. When the back button is enabled, touching the back button returns the attacker to the previous screen. Any additional network calls cause the SDK to block the attacker again. By disabling the back button, the attacker remains on the CAPTCHA page until he solves the Captcha challenge, or until he exits the application and relaunches it. When the application is relaunched, any additional network call is blocked with a Captcha page.

By default, the SDK enables using the back button.

1. To disable the back button, add the following code to the PXManager object during initialization of the SDK:

1
.setBackButtonDisabled(true)
2
3
.setBackButtonPressedCallback(new BackButtonPressedCallBack(){
4
5
6
@Override
7
8
public void onBackButtonPressed(){
9
10
Log.i(LOG_TAG, "back button pressed");
11
12
}
13
14
})

2. Inside the onBackButtonPressed method you can add the code of your choice to return the blocked user to his previous flow.

Adding Custom Parameters

Custom parameters allow you to collect and send specific app or device information to be used later for aggregations and intelligence.

Using the PXManager*setCustomParameters()` method you can specify up to 10 custom parameters to be sent to PX servers on every network request.

setCustomParameters() accepts a Map of type [String, String] with all the keys beginning with custom_param followed by a number (1-10).

The setCustomParameters() method is set once before calling the start method.

The following example adds 2 custom parameters:

1
@Override
2
3
public void onCreate() {
4
5
super.onCreate();
6
7
SoLoader.init(this, /* native exopackage */ false);
8
9
10
Map<String, String> customParams = new HashMap<>();
11
12
customParams.put("custom_param1", "John Bradely");
13
14
customParams.put("custom_param2", "New York");
15
16
17
PXManager.getInstance()
18
19
.setCustomParameters(customParams)
20
21
.start(this, "<app_id>");
22
23
24
.. _add-the-perimeterx-http-headers-to-the-applications-http-requests:

WebView Integration

Added in version: v1.15.2

If your application includes a WebView, you need to allow the SDK to handle the session connection between the web view and the application.

To do that, after you create a web view instance (or get its reference from the view), call:

1
PXWebView.pxInit(webView, webViewClient);

• The first parameter is your web view instance.

• The second parameter is optional and can be NULL. If you want to receive events from the web view, you should pass your web view client instance.

The SDK depends on Javascript. You should not disable Javascript in your web view’s settings.

Support Account Defender (From version 1.16.5)

The Account Defender Manager instance is retrieved by calling PXAccountDefenderManager.getInstance(context) with a context object. To enable the feature, a user ID must be set. That can be done by calling the PXAccountDefenderManager.setUserID function and providing the user ID. When the user ID is changed, the function should be called again with the updated user ID. If the user logs out, the function should be called with nil. The function should be called after the PXManager.startWith function.

To register outgoing URL requests, call the PXAccountDefenderManager.registerOutgoingUrlRequest function with the URL. This function should be called only when Account Defender is enabled (user ID is set).

User Agent Convention

The application’s user agent is used to identify and differentiate between application versions. For accurate detection it is important that the user agent your application reports is informative. Here is the recommended convention:

Doctor App

The “Doctor App” is a tool to help you verify the mobile SDK integration by simulating a typical user flow in your application. To enable this feature, add the enableDoctorCheck = true parameter in the start method.

Example:

1
[PXManager.sharedInstance startWith:@"[YOUR_APP_ID]" enableDoctorCheck:YES];

Flow:

1. Welcome screen: In this screen you select whether to start a new test or load the summary of the previous test, if one exists.

2. Instructions screen: In this screen you get detailed instructions on how the Doctor app works

3. Test selection screen: In this screen you choose which type of test to execute. Options are:

a. Native app framework - test your native URL requests.

b. Web view framework - test your web view’s URL requests.

After executing either test, you will return to this screen to be able to execute the other test or to continue and review the test results in the summary screen.

4. Summary screen: In this screen you are able to view the results of the executed tests. You can go into details regarding each test and get troubleshooting tips in case a test failed to help you analyze what is causing this issue.

Verifying Your Integration

Validating that PXManager is Loaded Properly

Checking the ManagerReady Callback

To verify that SDK is implemented correctly, print a line to the console when the ManagerReady callback is fired.

1
.setManagerReadyCallback(new ManagerReadyCallback() {
2
3
@Override
4
5
public void onManagerReady(HashMap<String, String> headers) {
6
7
System.out.println("Manager ready called back");
8
9
}
10
11
})

A log line similar to the example below should be displayed in your Android Monitor window:

1
09-28 21:13:09.776 3484-3585/com.perimeterx.example I/System.out: Manager ready called back

Checking With ADB

Connect to the device with ADB and run adb logcat | grep InternalManager.

This should produce the following output indicating the SDK has started and is in a ready state:

1
$ adb logcat | grep InternalManager
2
3
09-28 21:13:08.129  3484  3484 I InternalManager: SDK start()
4
5
09-28 21:13:08.227  3484  3484 I InternalManager: shouldRunCompleteSDKFlow - app version is different - new version: 1.0
6
7
09-28 21:13:08.227  3484  3484 I InternalManager: SDK shouldRunCompleteSDKFlow
8
9
09-28 21:13:08.227  3484  3484 I InternalManager: checkSDKEnabled...
10
11
09-28 21:13:08.576  3484  3511 I InternalManager: SDK is enabled on server
12
13
09-28 21:13:08.576  3484  3511 D InternalManager: Running app init activity
14
15
09-28 21:13:09.776  3484  3585 I InternalManager: SDK ready time: 1647

Validating that HTTP Headers Are Part of Your Request

Connections to your API endpoint can be inspected using a local proxy such as CharlesProxy_.

When inspecting requests look for the HTTP header named X-PX-AUTHORIZATION.

If this header is not present go back to the application code responsible for making the request and review to verify the headers were added to the request properly.

Validating Denied Requests

Denied requests have one of two possible actions, block or challenge, and both should be validated to ensure the request is properly handled.

Console Developer Testing Tools

Developers integrating with the PX Mobile SDK can be given access to the HUMAN Portal in a developer role. They then have access to the Developer section, which contains the Mobile Enforcement Verification tool. This tool allows a developer to mark their requests to be denied for testing purposes.

The testing tool is necessary to validate denied requests.

1. Access the tool at https://console.humansecurity.com/botDefender/admin?page=integration.

2. Locate your test device’s Visitor ID <glossary:VID>, and click the <glossary:VID> Extractor button.
   This will launch the <glossary:VID> Extractor model

3. Insert your IP address and click Search.
   This locates all <glossary:VID>s for your APP ID.

4. Click Select to return to the tool with the App ID and <glossary:VID> fields populated.

5. When the App ID and <glossary:VID> are available, you can start validating denied requests.

Validating a Challenge Response

To validate a challenge response:

1. Click Captcha in the test tool and wait for the green toast notification to confirm you are ready to continue.

2. When the next PX token refresh occurs in your mobile application you will receive the CAPTCHA WebView.

3. To force a token refresh simply exit and relaunch the application.

4. Solve the challenge presented and verify that you are able to return to the application and continue using it.

Validating a Blocking Response

To validate a blocking response:

1. Click Block in the test tool and wait for the green toast notification to confirm you are ready to continue.

2. When the next PX token refresh occurs in your mobile application you will receive the block WebView.

3. To force a token refresh simply relaunch the application. Once you are blocked you cannot continue.

4. To release from blocking, exit the application, click the Clear button, and reload the application to verify that the clean token was received and the application is operating as expected.

Appendix

Configuring an Android Emulator to use Charles Proxy

To configure your Android Emulator:

1. Set the HTTP proxy settings in the Wi-Fi menu.

2. In the Wi-Fi menu long press the connected network, select Modify Network, and fill in the proxy settings.
   If you are running Charles Proxy on your local machine then use the local IP (not the loopback).

3. To intercept HTTPS requests follow the guidelines at:
    https://www.charlesproxy.com/documentation/using-charles/ssl-certificates/
   In Android Nougat special permissions are required to use a certificate added to the trust store.

Deactivating the PX Mobile Sensor Remotely

In certain cases, the PX Mobile Sensor (SDK) may need to be deactivated remotely, and the app run without any sensor intervention.

This can be done based on any combination of the following parameters:

• AppID
• Operating System
• Operating System Version
• SDK Version
• App Version

To deactivate the PX Mobile Sensor, contact your assigned focal point. Portal support to allow deactivation via the Portal will be added in the future.

Support for Full Screen on Devices with Display Cutouts

The default cutout mode is set to Never, meaning the challenge page will not render on the cutout area:

To change the behaviour to SHORT_EDGES, and have the page render on the entire display area, set the setIsCutoutFullScreen() to true.

The setIsCutoutFullScreen() method is set once before calling the start method.

1
@Override
2
public void onCreate() {
3
    super.onCreate();
4
    SoLoader.init(this, /* native exopackage */ false);
5
6
    PXManager.getInstance()
7
        .setIsCutoutFullScreen(true)
8
        .start(this, "<app_id>");

The challenge page will now render over the entire display
