The Code Defender Script Analyzer provides an in-depth analysis of individual scripts’ details, actions, and risk.
This feature provides a detailed view of all script actions. Every document object model (DOM) interaction, network and storage action of all scripts is readily available on the dashboard. The Analyzer dashboard also shows scripts that started, stopped or have ongoing actions on any given day, as well as script actions over time.

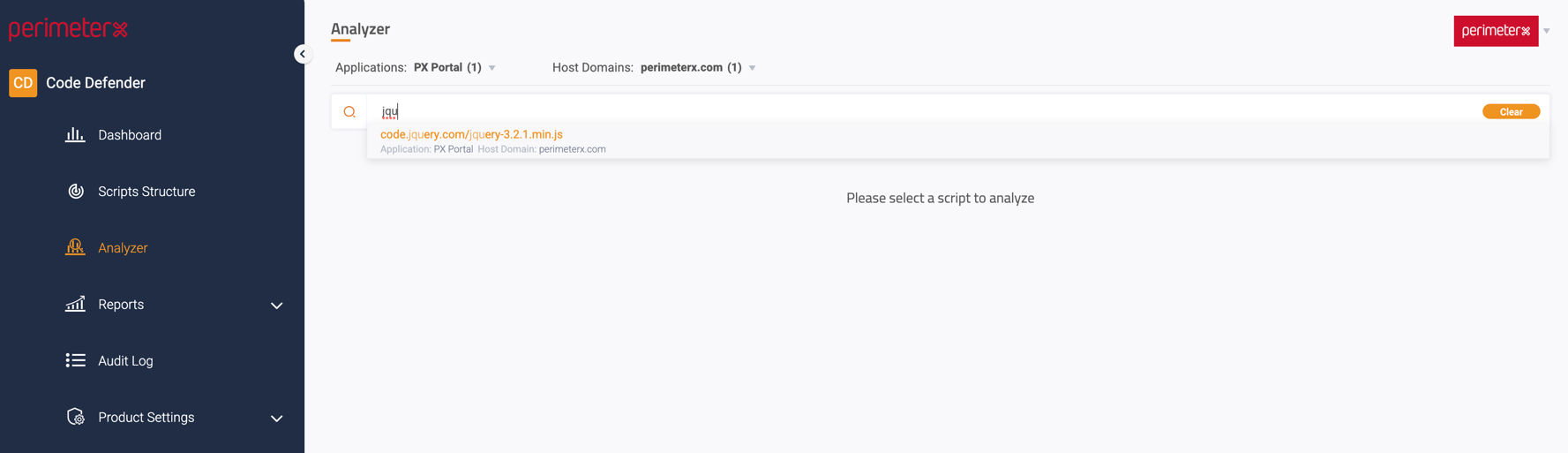

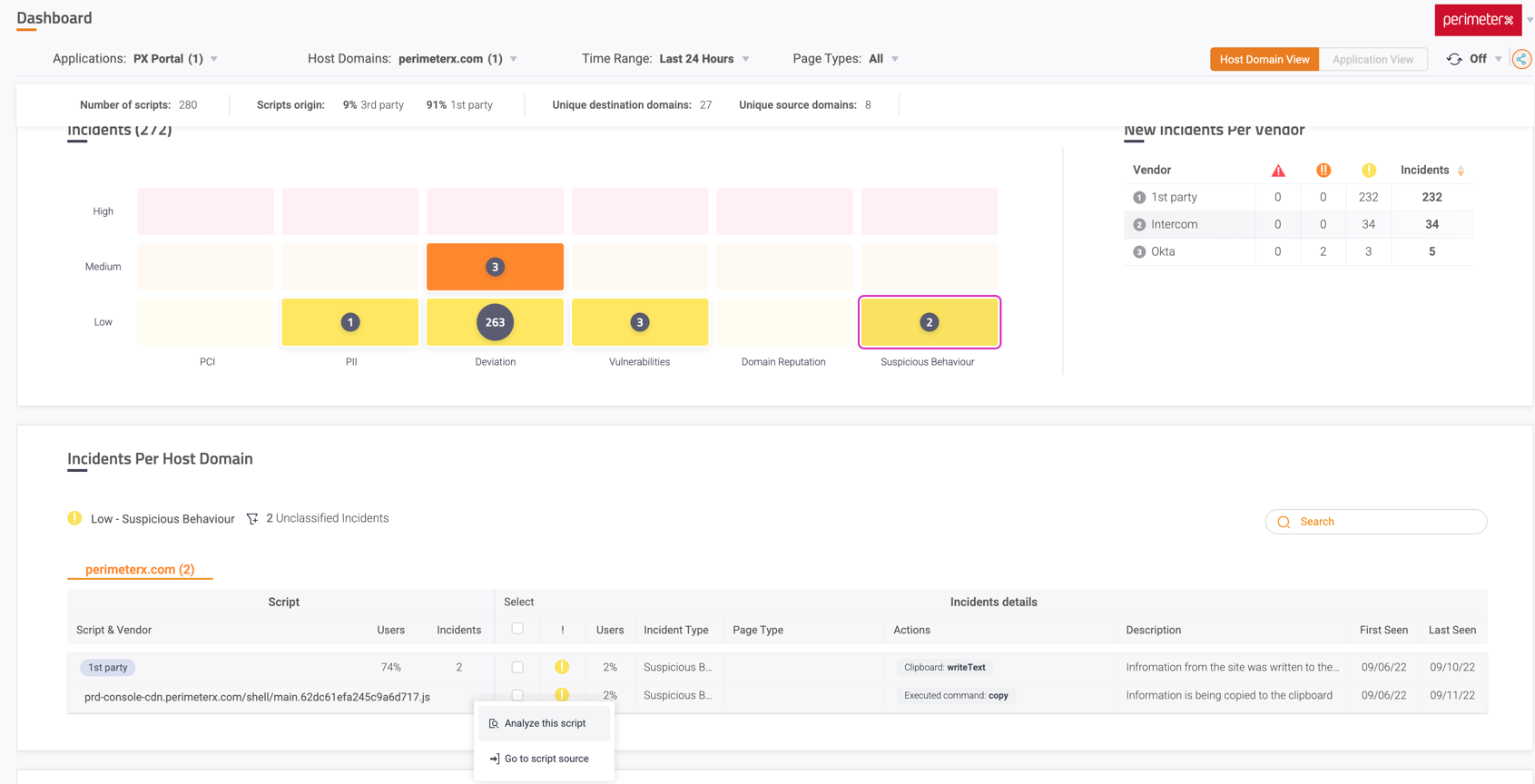

The Script Analyzer is accessed either by the left sidebar, or by clicking on any script ID or incident on the Dashboard and clicking Analyze this scrip. In the Analyzer page, you can search for a specific script or you can select any script from the searchbar. The list of scripts that appear in the dropdown corresponds to the filters selected in the Filters bar (selected application(s) + selected host domain(s)). Changing any of the filters changes the scripts presented in the dropdown list.
The analyzer provides the following analyses:

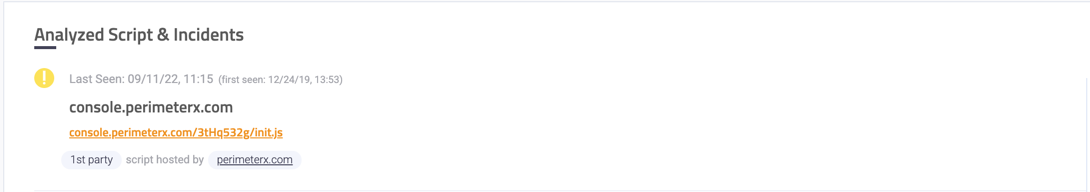

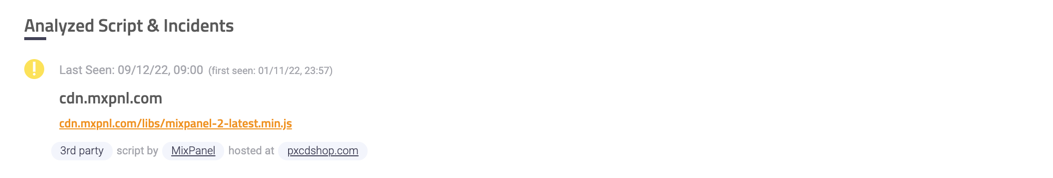

General information about the script:
1st party script:
3rd party script:

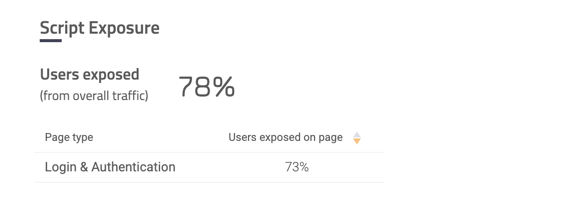

The percentage of users affected by the script.
broken down by page type if available

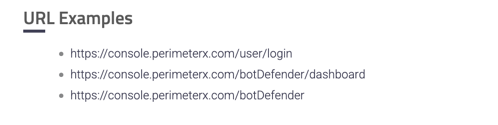

Top 3 pages of your site where the script was frequently detected

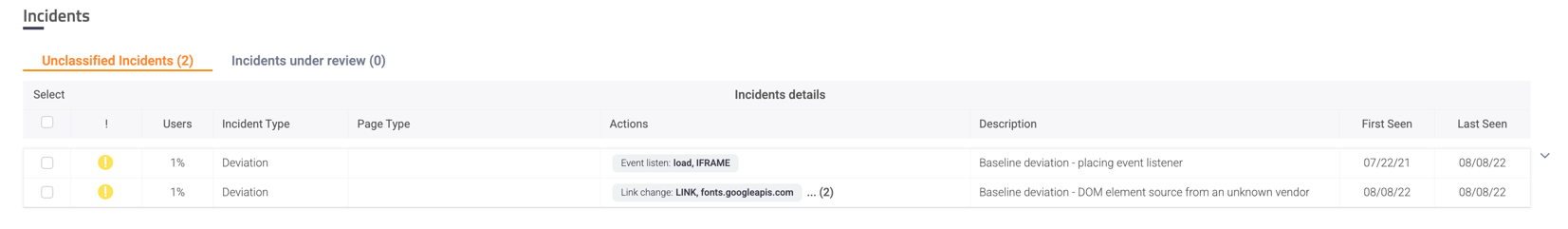

All incidents triggered by the script’s action(s) from the last 3 months, grouped by “Unclassified” or “Under review”.
Expand the Incident to display the full list of actions or page types.

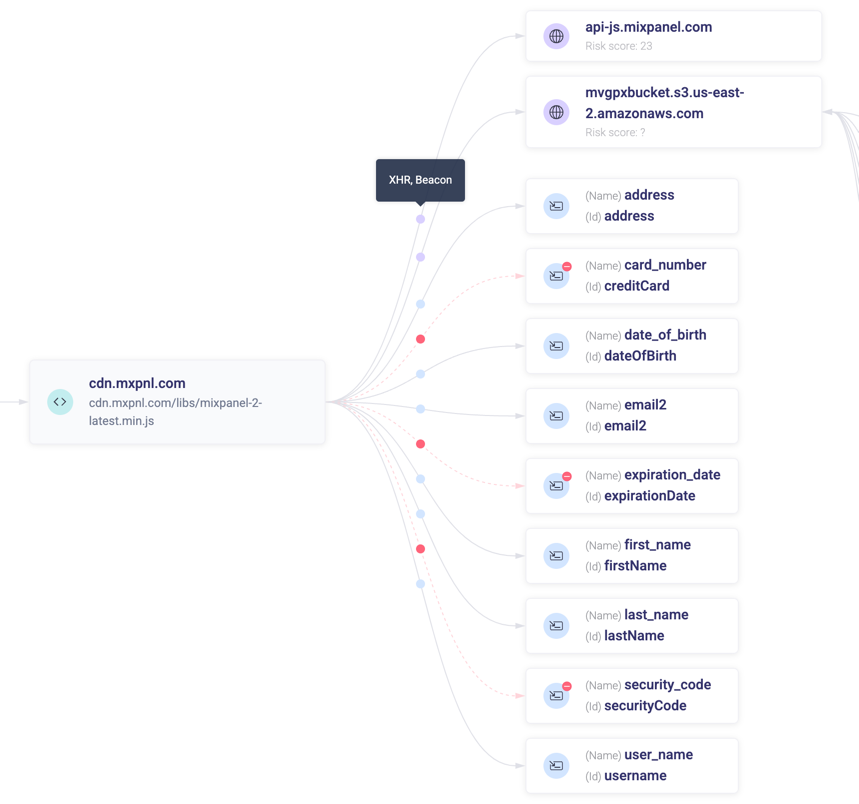

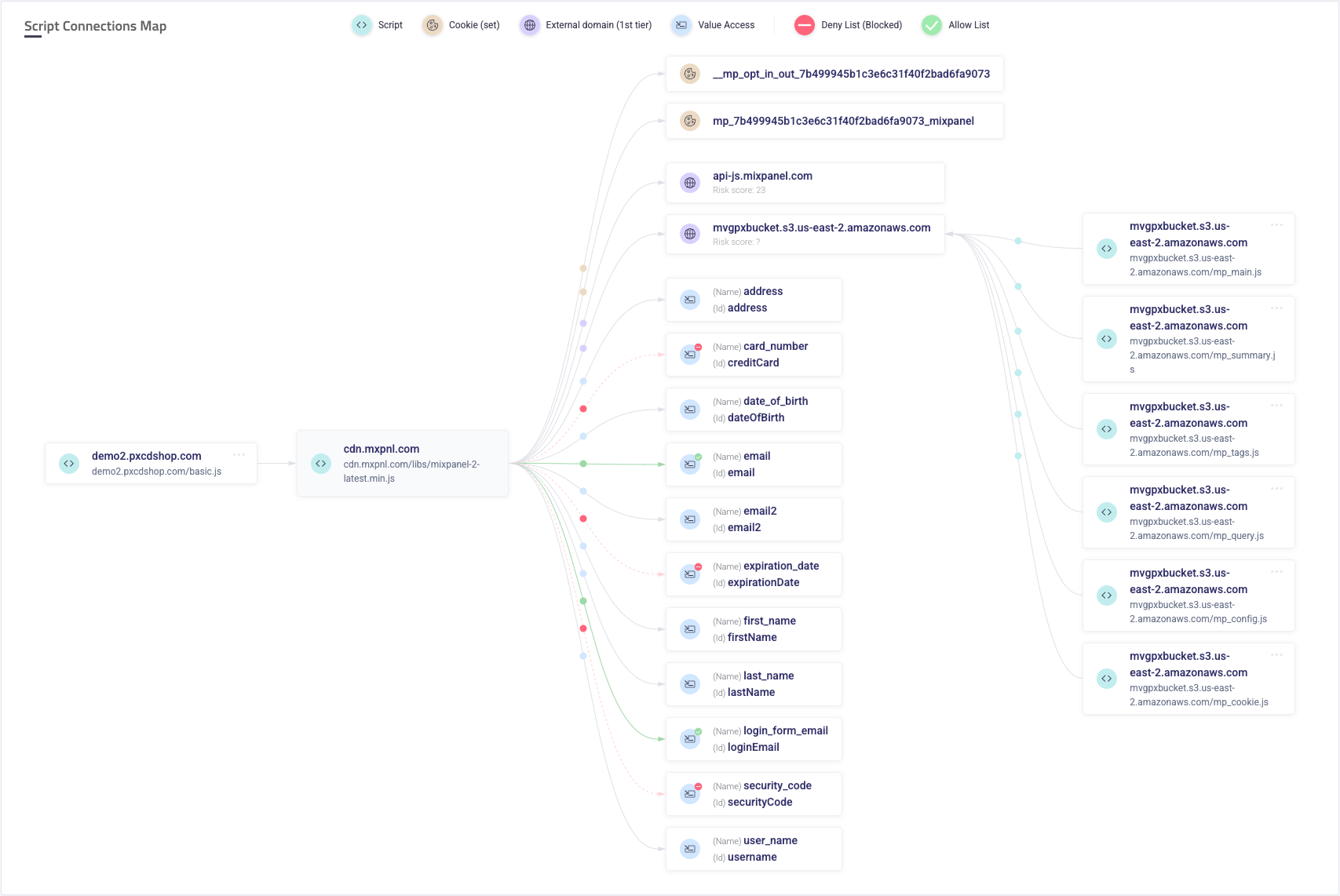

A showcase of the most important behavior of the script in a visual, concise manner: what cookies were set, what domains were being communicated with (and which scripts were fetched via these domains), as well as what element values were being accessed.
Any allowed or denied behaviors are reflected via a unique styling (green and red lines and icons, respectively).
When you hover over the colored dot on each line, a tooltip is displayed describing the connection (for example, “XHR, Beacon” when hovering over a connection to the domain that was communicated with using both an XHR and Beacon request).
The visual flow starts on the left (1st column) with the collection of scripts that loads the script that is currently being analyzed.
When this column is empty, this indicates that the analyzed script is loaded directly from the DOM.
The 2nd column represents the script currently being analyzed.
The 3rd column represents the actions performed by the analyzed script:
The entities on the map can be filtered out via the clickable legend on top.

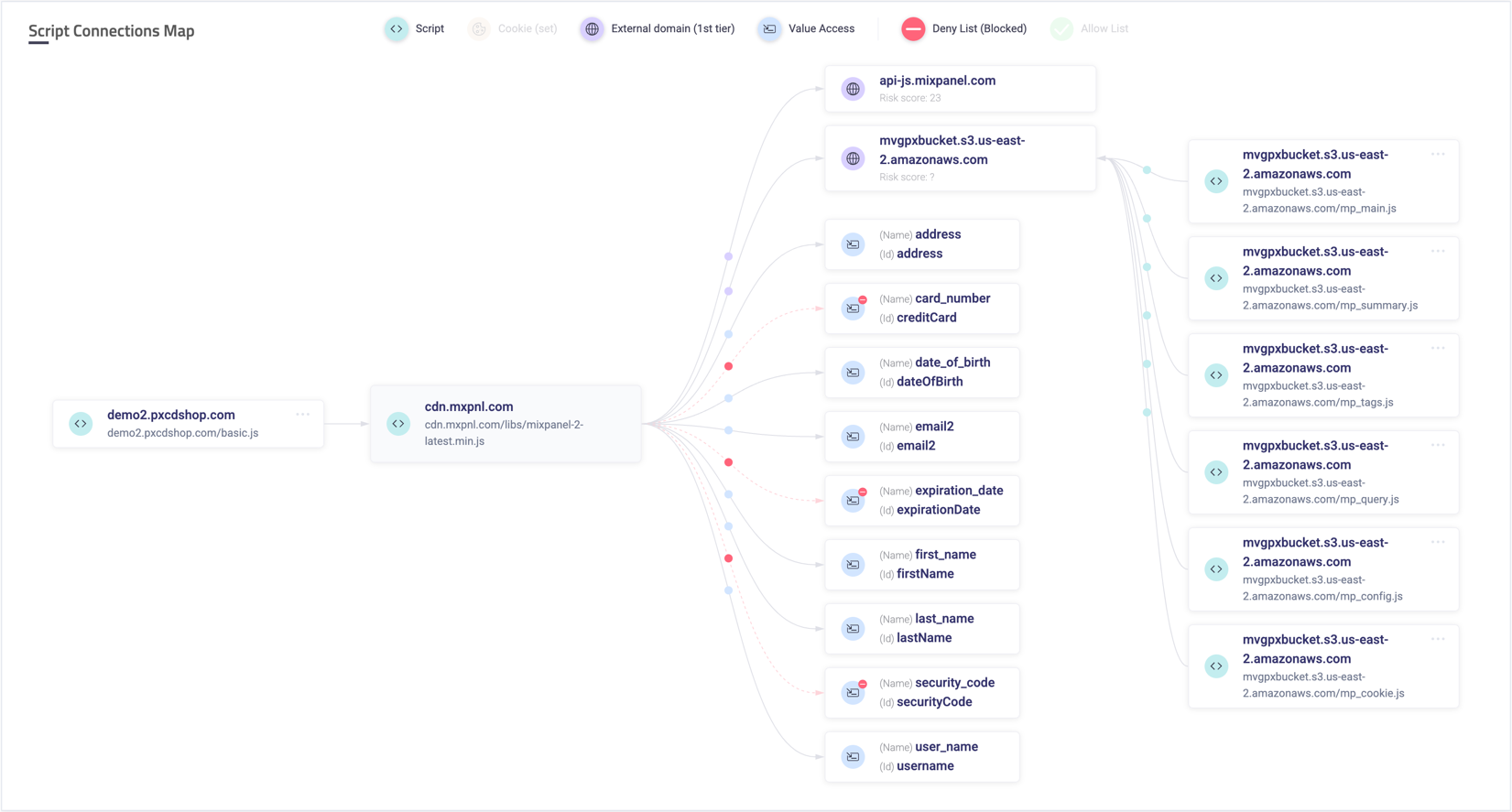

For example, filtering out the ‘Set Cookie’ actions, as well as any allowed actions results in the following map:
The analysis process can be extended by inspecting any of the loading (1st column) or loaded-by scripts (4th column).

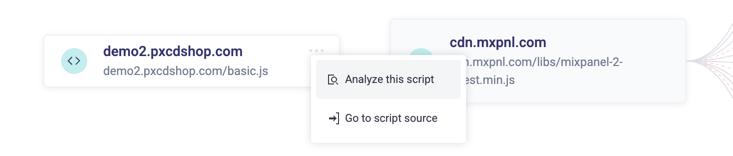

Clicking the More button in the top-right corner of any script entity opens a menu that allows to see the script’s source code or analyze it instead of the current one.

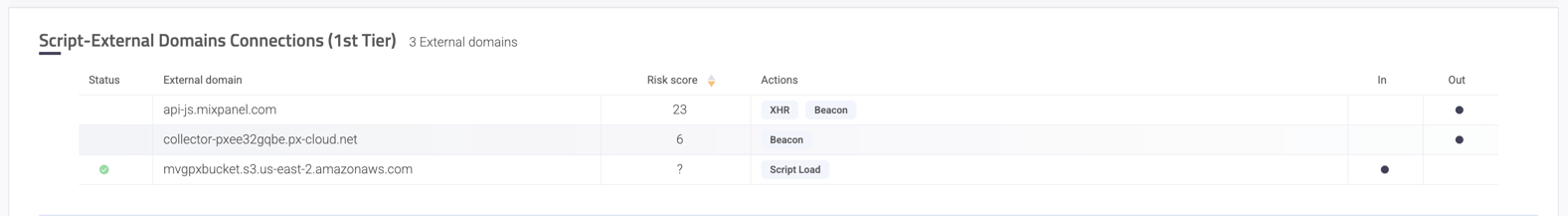

A list of all the domains the script is communicating with. Each domain includes its status (allowed or denied, when applicable), risk score (aggregated risk level based on internal and external sources), the types of interactions (actions) that were observed (for example XHR, Fetch, IFrame Load, etc.), and whether the communication was in-bound or out-bound.

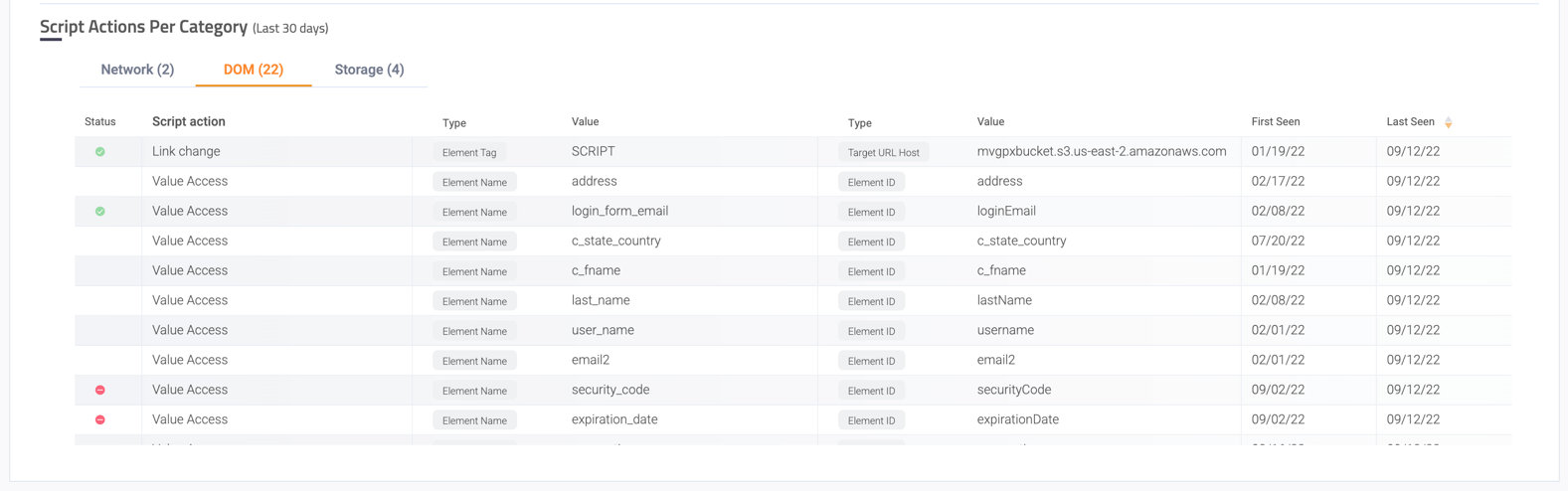

All the actions performed by the script in the last 30 days, broken down into 3 main category types: Network, DOM and Storage.
Each action includes its status (allowed or denied, when applicable) and the observed values with value type.
